Product Summary

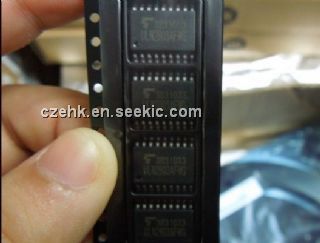

The ULN2803APG / AFWG Series are high?voltage, high?current darlington drivers comprised of eight NPN
darlington pairs.
All units feature integral clamp diodes for switching inductive loads.
Applications include relay, hammer, lamp and display (LED) drivers.
The suffix (G) appended to the part number represents a Lead (Pb)-Free product.
Features
Output current (single output) 500 mA (Max.)
High sustaining voltage output 50 V (Min.)
Output clamp diodes
Inputs compatible with various types of logic.
Package Type?APG : DIP?18pin
Package Type?AFWG : SOL?18pin
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ULN2803AFWG(5,EL,M |
Toshiba |
Transistors Darlington 8CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
ULN2803AFWG(5,M) |
Toshiba |
Transistors Darlington 8CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
ULN2803AFWG(O,EL,M |
Toshiba |
Transistors Darlington 8ch 500mA 50V 2.7k Ohm 5V -40/85 |
Data Sheet |
|
|
||||||||||||
 |
ULN2803AFWG(C,ELHA |
Toshiba |
Transistors Darlington 8ch 500mA 50V 2.7k Ohm 5V -40/85 |
Data Sheet |
|
|
||||||||||||
|
ULN2803AFWG(O,M) |
Toshiba |
Transistors Darlington 8-ch 500mA 50V 2.7 kOhm 5V CMOS |
Data Sheet |
Negotiable |
|
||||||||||||
