Product Summary

The 74LV14D is a low-voltage hex inverting Schmitt-trigger and is pin and function compatible with 74HC/HCT14. The 74LV14 provides six inverting buffers with Schmitt-trigger action. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.

Parametrics

74LV14D absolute maximum ratings: (1)DC supply voltage: -0.5 to 7V; (2)DC input diode current: 20mA; (3)DC output diode current: 50mA; (4)storage temperature range: -65 to 150℃; (5)power dissipation per package: 750mW.

Features

74LV14D features: (1)Wide operating voltage: 1.0 to 5.5 V; (2)Optimized for Low Voltage applications: 1.0 to 3.6 V; (3)Accepts TTL input levels between VCC= 2.7 V and VCC= 3.6 V; (4)Typical VOLP(output ground bounce) < 0.8 V at VCC= 3.3 V,Tamb= 25°C; (5)Typical VOHV(output VOH undershoot) > 2 V at VCC= 3.3 V, Tamb= 25°C.; (6)Output capability: standard; (7)ICC category: SSI.

Diagrams

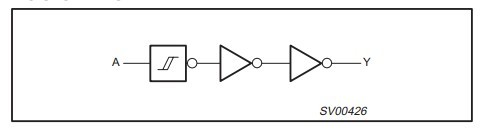

74LV14D block diagram
