Product Summary

The PIC24HJ64GP506-I is a high-performance 16-bit microcontroller.

Parametrics

PIC24HJ64GP506-I absolute maximum ratings: (1)operating voltage range: 3 to 3.6V; (2)temperature range: -40 to 85℃; (3)program memory: 64kB.

Features

PIC24HJ64GP506-I features: (1)Modified Harvard architecture; (2)C compiler optimized instruction set; (3)16-bit wide data path; (4)24-bit wide instructions; (5)Linear program memory addressing up to 4M instruction words; (6)Linear data memory addressing up to 64 Kbytes; (7)74 base instructions: mostly 1 word/1 cycle.

Diagrams

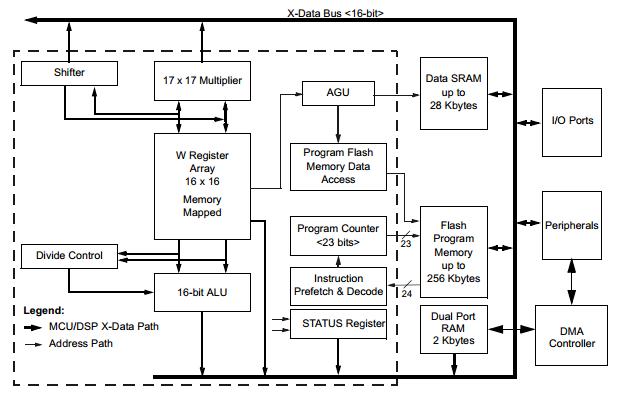

PIC24HJ64GP506-I block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

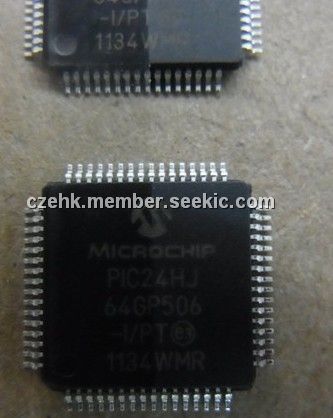

PIC24HJ64GP506-I/PT
PIC24HJ64GP506-I/PT
Microchip Technology
16-bit Microcontrollers (MCU) 16 Bit MCU 64LD 40 MIPS 64KB Flash
Data Sheet
0-1: $3.71
1-10: $2.97
10-25: $2.72
25-100: $2.47
