Product Summary

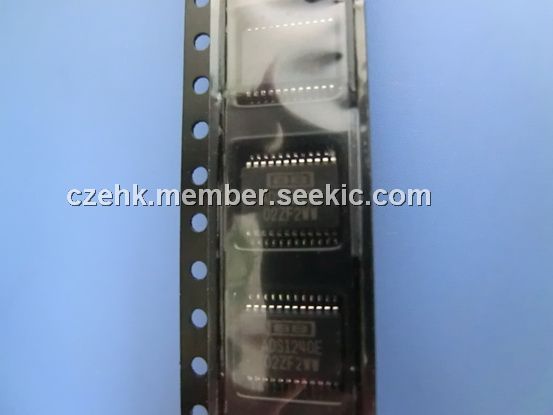

The ADS1240E is a precision, wide dynamic range, delta-sigma, Analog-to-Digital (A/D) converter with 24-bit resolution operating from 2.7V to 5.25V power supplies. The ADS1240E provides up to 24 bits of no missing code performance and effective resolution of 21 bits. It is designed for high-resolution measurement applications in smart transmitters, industrial process control, weigh scales, chromatography, and portable instrumentation. The applications of the ADS1240E are industrial process control, weigh scales, liquid/gas chromatography, blood analysis, smart transmitters, portable instrumentation.
Parametrics
ADS1240E absolute maximum ratings: (1)AVDD to DGND: –0.3V to +6V; (2)DVDD to DGND:–0.3V to +6V; (3)Input Current:100mA, Momentary; (4)DGND to AGND:–0.3V to 0.3V; (5)Input Current: 10mA, Continuous; (6)AIN:AGND –0.5V to AVDD + 0.5V; (7)Digital Input Voltage to DGND:–0.3V to DVDD + 0.3V; (8)Digital Output Voltage to DGND:–0.3V to DVDD + 0.3V; (9)Maximum Junction Temperature: +150℃; (10)Operating Temperature Range:–40℃ to +85℃; (11)Storage Temperature Range:–60℃ to +150℃; (12)Lead Temperature (soldering, 10s):+300℃.
Features
ADS1240E features: (1)24 bits no missing codes; (2)simultaneous 50Hz and 60Hz rejection(–90dB minimum); (3)0.0015% INL; (4)21 bits effective resolution(PGA = 1), 19 bits (PGA = 128); (5)PGA gains from 1 to 128; (6)single cycle settling; (7)programmable data output rates; (8)external differential reference of 0.1V to 5V; (9)on-chip calibration; (10)SPI compatible; (11)2.7V to 5.25V supply range; (12)600μW power consumption; (13)up to eight input channels; (14)up to eight data I/O.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS1240E |
Texas Instruments |
ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter |
Data Sheet |
|
|
||||||||||||
|
ADS1240E/1K |
Texas Instruments |
ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter |
Data Sheet |
|
|
||||||||||||
|
ADS1240E/1KG4 |
Texas Instruments |
ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter |
Data Sheet |
|
|
||||||||||||
|
ADS1240EG4 |
Texas Instruments |
ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter |
Data Sheet |
|
|
||||||||||||
