Product Summary

The MAX233CPP is a line driver/receiver. It is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The MAX233CPP is especially useful in battery-powered systems, since its low-power shutdown mode reduces power dissipation to less than 5uW. The MAX233CPP uses no external components and are recommended for applications where printed circuit board space is critical. The applications of the MAX233CPP are Portable Computers, Low-Power Modems, Interface Translation, Battery-Powered RS-232 Systems, Multidrop RS-232 Networks.

Parametrics

MAX233CPP absolute maximum ratings: (1)VCC:-0.3V to +6V; (2)V+ :(VCC - 0.3V) to +14V; (3)V- :+0.3V to -14V; (4)Input Voltages: TIN:-0.3V to (VCC - 0.3V), RIN:±30V, TOUT:±15V; (5)Output Voltages: TOUT:±15V, ROUT:-0.3V to (VCC + 0.3V); (6)Driver/Receiver Output Short Circuited to GND:Continuous; (7)Operating Temperature Ranges:0℃ to +70℃; (8)Storage Temperature Range:-65℃ to +160℃; (9)Lead Temperature (soldering, 10s):+300℃; (10)Soldering Temperature (reflow):+260℃, All other packages containing lead(Pb):+240℃.

Features

MAX233CPP features: (1)For Low-Voltage, Integrated ESD Applications MAX3222E/MAX3232E/MAX3237E/MAX3241E/MAX3246E: +3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1μF External Capacitors (MAX3246E Available in a UCSP Package); (2)For Low-Cost Applications MAX221E: ±15kV ESD-Protected, +5V, 1μA, Single RS-232 Transceiver with AutoShutdown.

Diagrams

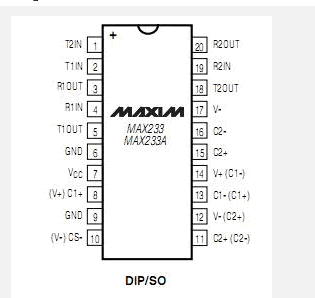

MAX233CPP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX233CPP
MAX233CPP
Maxim Integrated Products
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver
Data Sheet
0-1: $5.21
1-25: $3.47
25-50: $2.51
50-250: $2.47
MAX233CPP+G36
MAX233CPP+G36
Maxim Integrated Products
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver
Data Sheet
0-1: $5.17
1-25: $3.47
25-50: $2.51
50-100: $2.48
