Product Summary

The K3265 is a Field Effect Transistor. It is suitable for Chopper Regulators DC-DC Converter and Motor Drive Applications.

Parametrics

K3265 absolute maximum ratings: (1)Drain-source voltage, VDSS: 700 V; (2)Drain-gate voltage (RGS = 20 kΩ), VDGR: 700 V; (3)Gate-source voltage, VGSS: ±30 V; (4)Drain current, DC, ID: 10 A; Pulse, IDP: 30 A; (5)Drain power dissipation, PD: 45 W; (6)Single pulse avalanche energy, EAS: 420 mJ; (7)Avalanche current, IAR: 10 A; (8)Repetitive avalanche energy, EAR: 4.5 mJ; (9)Channel temperature, Tch: 150℃; (10)Storage temperature range, Tstg: -55~150℃.

Features

K3265 features: (1)Low drain-source ON resistance: RDS (ON) = 0.72 Ω (typ.); (2)High forward transfer admittance: |Yfs| = 7.0 S (typ.); (3)Low leakage current: IDSS = 100 μA (max) (VDS = 700 V); (4)Enhancement mode: Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA).

Diagrams

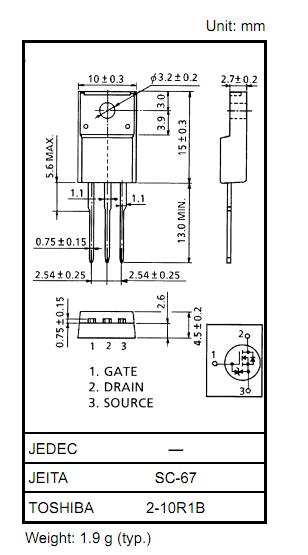

K3265 dimensions
