Product Summary

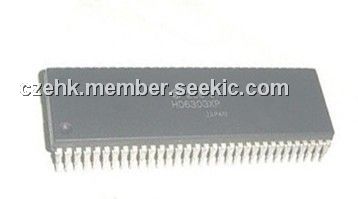

The HD6303XP is a CMOS 8-bit micro processing unit (MPU) which includes a CPU compatible with the HD6301VI, 192 bytes of RAM, 24 parallel I/O pins, a Serial Communication Interface (SCI) and two timers on chip.
Parametrics
HD6303XP absolute maximum ratings: (1)supply voltage: -0.3 to 7.0V; (2)Input voltage: -0.3 to Vcc+0.3V; (3)Operating Temperature: 0 to 70℃; (4)Storage Temperature: -55 to 150℃.
Features
HD6303XP features: (1)Instruction Set Compatible with the HD6301V1; (2)192 Bytes of RAM; (3)24 Parallel I/O Pins 16 I/O Pins-Port 2, 6, 8 fnput Pins Port 5; (4)Darlington Transistor Drive (Port 2, 6); (5)16 Bit Programmable Timer Input Capture Register x 1 Free Running Counter x 1 Output Compare Register x 2; (6)6-Bit Reloadable Timer External Event Counter Square Wave Generation; (7)Serial Communication Interface; (8)Memory Ready; (9)Halt; (10)Error Detection (Address Trap, Op-Code Trap); (11)Interrupts: 3 External, 7 Internal; (12)Up to 65k Bytes Address Space; (13)Low Power Dissipation Mode Sleep Mode Standby Mode; (14)Minimum Instruction Execution Time -0.5/is (f- 2,0 MHz).
Diagrams
 |
