KDS226-RTK/P

silicon epitaxial planar diode, 300mA, 85V, SOT

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.02~0.06 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.02~0.06

PartNumber:: KDS226-RTK/P

Brand:: KEC(Korea Electronics) - KEC | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. chen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-07

From Other Seller

Part Number:KDS226-RTK/P
US $0.02 - 0.06
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The KDS226-RTK/P is a silicon epitaxial planar diode.

Parametrics

KDS226-RTK/P absolute maximum ratings: (1)Maximun(Peak)Reverse Voltage,Vrm:85V; (2)Reverse Voltage,Vr: 80V; (3)Maximum(Peak)Forward Current,Ifm: 300mA; (4)Average Forward Current,Io: 100mA; (5)Surge Current(10ms),Ifsm: 2A; (6)Power Dissipation,Pd:150mW; (7)Junction Temperature,Tj: 150°C; (8)Storage Temperature Range,Tstg:-55 to 150°C.

Features

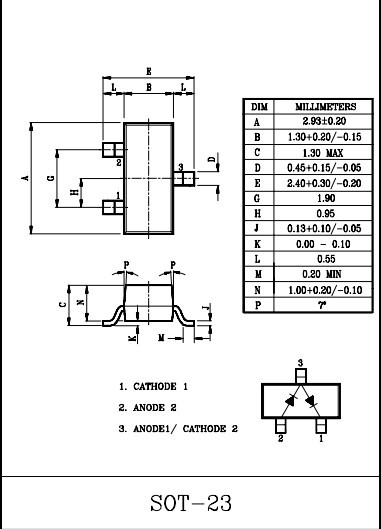

KDS226-RTK/P features: (1)Small Package : SOT23; (2)Low Forward Voltage : Vf=0.9V(Typ.); (3)Fast Reverse Recovery Time : Trr=1.6ns(Typ.); (4)Small Total Capacitance: Ct=0.9pF(Typ.).
