Product Summary
The AD767JN is a complete voltage output 12-bit digital-toanalog converter including a high stability buried Zener reference and input latch on a single chip. The AD767JN uses 12 precision high-speed bipolar current steering switches and a laser-trimmed thin-film resistor network to provide high accuracy.Microprocessor compatibility of the AD767JN is achieved by the on-chip latch. The design of the input latch allows direct interface to 12-bit buses. The latch responds to strobe pulses as short as 40 ns, allowing use with the fastest available microprocessors.
Parametrics
AD767JN absolute maximum ratings: (1)VCC to Power Ground: 0 V to +18 V; (2)VEE to Power Ground: 0 V to –18 V; (3)Digital Inputs (Pins 11, 13–24) to Power Ground: –1.0 V to +7.0 V; (4)Ref In to Reference Ground: ±12 V; (5)Bipolar Offset to Reference Ground: ±12 V; (6)10 V Span R to Reference Ground: ±12 V; (7)20 V Span R to Reference Ground: ±24 V.
Features
AD767JN features: (1)Complete 12-Bit D/A Function: On-Chip Output Amplifier; High Stability Buried Zener Reference; (2)Fast 40 ns Write Pulse; (3)0.3 Skinny DIP and PLCC Packages; (4)Single Chip Construction; (5)Monotonicity Guaranteed Over Temperature; (6)Settling Time: 3 ms max to 1/2 LSB; (7)Guaranteed for Operation with 612 V or 615 V Supplies; (8)TTL/5 V CMOS Compatible Logic Inputs; (9)MIL-STD-883 Compliant Versions Available.

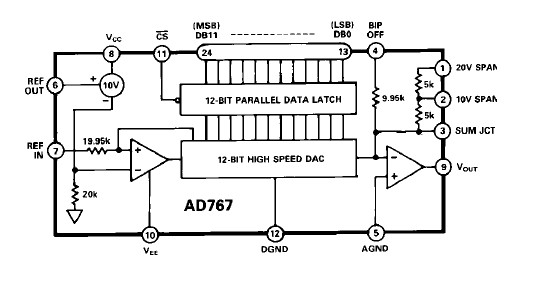

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD767JN |
|
IC DAC 12BIT 24-DIP |
Data Sheet |
|
|
||||||||||||||||
|
AD767JNZ |
|
IC DAC 12BIT 24-DIP |
Data Sheet |
|
|
||||||||||||||||
