Product Summary
The MAX708CPA is a low-cost, uP supervisory circuit. These devices signifi-cantly improve system reliability and accuracy com-pared to separate ICs or discrete components.; The MAX705/MAX706/MAX813L provide four functions. A reset output during power-up, power-down, and brownout conditions. An independent watchdog output that goes low if the watchdog input has not been toggled within 1.6 seconds. A 1.25V threshold detector for power-fail warning,low-battery detection, or for monitoring a power sup-ply other than +5V. An active-low manual-reset input.The MAX708CPA is the same as the MAX705/MAX706, except an active-high reset is substituted for the watchdog timer. The MAX813L is the same as the;MAX705, except RESET is provided instead of RESET.Two supply-voltage monitor levels are available: The MAX708CPA generates a reset pulse when the supply voltage drops below 4.65V, while the MAX706/MAX708 generate a reset pulse below 4.40V.All four parts are available in 8-pin DIP, SO and μMAX packages.
Parametrics
MAX708CPA absolute maximum ratings: (1)Terminal Voltage (with respect to GND)VCC:-0.3V to 6.0V ;All Other Inputs (Note 1) :-0.3V to (VCC+ 0.3V); (2)Input Current VCC: 20mA;GND : 20mA; (3)Output Current (all outputs) : 20mA; (4)Continuous Power Dissipation:Plastic DIP (derate 9.09mW/°C above +70°C) = 727mW;SO (derate 5.88mW/°C above +70°C=471mW;μMAX (derate 4.10mW/°C above +70°C)=330mW;CERDIP(derate 8.00mW/°C above +70°C)= 640mW; (5)Operating Temperature Ranges: 0°C to +70°C; (6)Storage Temperature Range :-65°C to +160°C; (7)Lead Temperature (soldering, 10sec): +300°C.
Features
MAX708CPA features: (1)μMAX Package: Smallest 8-Pin SO; (2)Guaranteed RESET Valid at VCC= 1V; (3)Precision Supply-Voltage Monitor:4.65V in MAX705/MAX707/MAX813L;4.40V in MAX706/MAX708; (4)200ms Reset Pulse Width; (5)Debounced TTL/CMOS-Compatible Manual-Reset Input; (6)Independent Watchdog Timer—1.6sec Timeout(MAX705/MAX706); (7)Active-High Reset Output(MAX707/MAX708/MAX813L); (8)Voltage Monitor for Power-Fail or Low-Battery; (9)Warning.

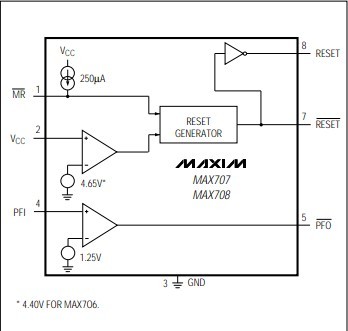

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX708CPA |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
|||||||||||||
MAX708CPA+ |
Maxim Integrated Products |
Supervisory Circuits Single uPower Supervisor |
Data Sheet |
|
|
