Product Summary

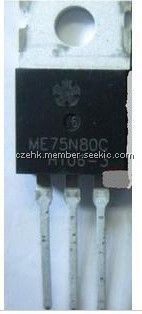

The ME75N80C is an n-channel enhancement mode MOSFET.

Parametrics

ME75N80C absolute maximum ratings: (1)drain-source voltage: 80V; (2)gate-source voltage: 20V; (3)continuous drain current: 75A; (4)pulsed drain current: 300A; (5)power dissipation: 75W; (6)operating junction and storage temperature range: -55 to 175℃.

Features

ME75N80C features: (1)Minimize input capacitance and gate charge ; (2)Specially designed for DC/DC converters and DC motor control.

Diagrams

ME75N80C block diagram
