MM74HCT00MX

NAND gate, -0.5 to 7V, 25mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.25

PartNumber:: MM74HCT00MX

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. chen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-15

From Other Seller

Part Number:MM74HCT00MX
US $0.10 - 0.25
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

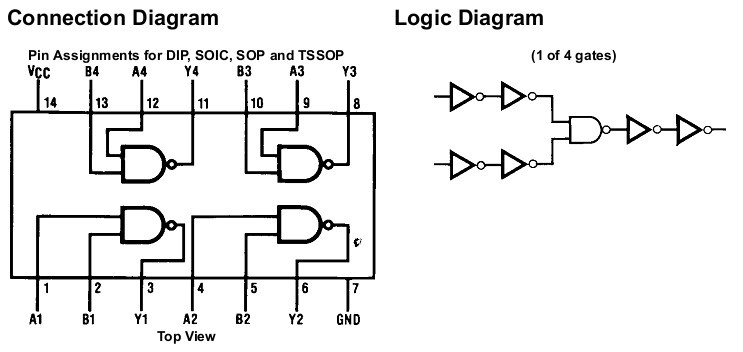

The MM74HCT00MX is an NAND gate fabricated using advanced silicon-gate CMOS technology which provides the inherent benefits of CMOS—low quiescent power and wide power supply range. This device is input and output characteristic and pin-out compatible with standard 74LS logic families. All inputs are protected from static discharge damage by internal diodes to VCC and ground.; (2)MM74HCT devices are intended to interface between TTL and NMOS components and standard CMOS devices.These parts are also plug-in replacements for LS-TTL devices and can be used to reduce power consumption in existing designs.

Parametrics

MM74HCT00MX absolute maximum ratings: (1)Supply Voltage (VCC) : -0.5 to + 7.0V; (2)DC Input Voltage (VIN):-1.5 to VCC + 1.5V; (3)DC Output Voltage (VOUT) : -0.5 to VCC+ 0.5V; (4)Clamp Diode Current (IIK, IOK) ± 20 mA; (5)DC Output Current, per pin (IOUT) ± 25 mA; (6)DC VCC or GND Current, per pin (ICC) ± 50 mA; (7)Storage Temperature Range (TSTG) :- 65° C to + 150 °C; (8)Power Dissipation (PD):600 mW; (9)S.O. Package only 500 mW; (10)Lead Temperature (TL)(Soldering 10 seconds) 260°C.

Features

MM74HCT00MX features: (1)TTL, LS pin-out and threshold compatible; (2)Fast switching: tPLH, tPHL= 14 ns (typ); (3)Low power: 10 μW at DC; (4)High fan out, 10 LS-TTL loads.
