Product Summary
The MRF140 is a MOSFET line.
Parametrics
MRF140 absolute maximum ratings: (1)drain-source voltage: 65V; (2)drain-gate voltage: 65V; (3)gate-source voltage: ±40V; (4)drain current: 16A; (5)total device dissipation: 300W; (6)storage temperature range: -65 to 150℃; (7)operating junction temperature: 200℃.
Features
MRF140 features: (1)Specified 28 volts, 30 MHz characteristics :Output power = 150 watts ;Power gain = 15 dB (Typ.) ;Efficiency = 40% (Typ.) ; (2)Superior high order IMD ; (3)IMD (d3) (150 W PEP): –30 dB (Typ.) ; (4)IMD (d11) (150 W PEP): –60 dB (Typ.) ; (5)100% tested for load mismatch at all phase angles with 30:1 VSWR.

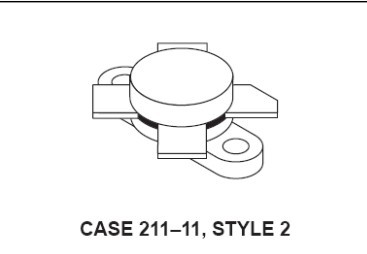

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

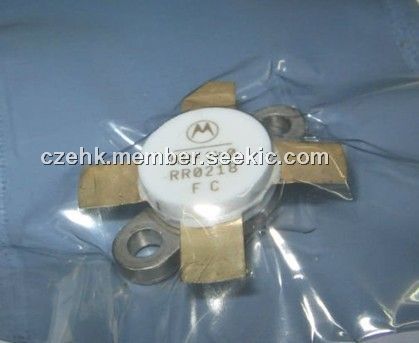

 MRF140 |
Other |
|
Data Sheet |
Negotiable |
|
||||
