Product Summary
The MAX262ACWG is a dual second-order universal swithed-capacitor active filter allowing microprocessor control of precise filter functions No external components are required for a variety of bandpass, lowpass, highpass.notch and allpass configurations. The device contains two second-order filter sections which place center frequency, Q, and filter operating mode under programmed control. The MAX262ACWG extends the center frequency range to 140kHz by employing lower clock-to-f0 ratios. The device is available in 24-pin dip and small outline package in commercial, extended, and military temperature ranges. The applications of the MAX262ACWG include μP tuned filters, anti-atiasing filters, digital signal processing, adaptive filters, signal analysis, phase-locked loops.
Parametrics
MAX262ACWG absolute maximum ratings: (1)Total supply voltage: 15V; (2)Input voltage, any pin: V- -0.3V to V+ +0.3V; (3)Input current, any pin: ±50mA; (4)Power dissipayion, plastic DIP: 660mW; CERDIP: 1000mW; Wide SO: 944mW.
Features
MAX262ACWG features: (1)Fllter Design Software Available; (2)Mircroprocessor Interface; (3)64-Step Center Frequency Control; (4)128-Step Q Control; (5)Independent Q and f0 programming; (6)Guaranteed clock to f0 ratio-1%(A grade); (7)75kHz f0 Range(MAX262); (8)Single +5V and ±5V Operation.

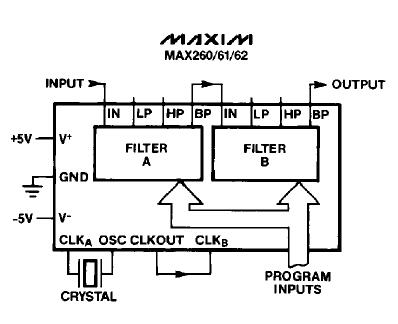

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX262ACWG-T |
Maxim Integrated Products |
Active Filters |
Data Sheet |
Negotiable |
|
||||
|
MAX262ACWG+T |
Maxim Integrated Products |
Active Filters |
Data Sheet |
Negotiable |
|
||||
|
MAX262ACWG+ |
Maxim Integrated Products |
Active Filters |
Data Sheet |
Negotiable |
|
||||
|
MAX262ACWG |
Maxim Integrated Products |
Active Filters |
Data Sheet |
Negotiable |
|
||||
