Product Summary
The 74ACT157M is a quad 2 channel multiplexer.
Parametrics
74ACT157M absolute maximum ratings: (1)VCC, supply voltage: -0.5 to +7V; (2)VI, DC input voltage: -0.5 to VCC+0.5V; (3)VO, DC output voltage: -0.5 to VCC+0.5V; (4)IIK, DC input diode current: ±20mA; (5)IOK, DC output diode current: ±20mA; (6)IO, DC: output current:±50mA; (7)Tstg, storage temperature: -65 to +150℃; (8)TL, lead temperature: 300℃.
Features
74ACT157M features: (1)High speed: tPD=5.5ns at VCC=5V; (2)Low power dissipation: ICC=8μA at TA=25℃; (3)Compatible with TTL outputs; (4)50Ω transmission line driving capability; (5)Symmetrical output impedance; (6)Balanced propagation delays; (7)Operating voltage range: VCC=4.5 to 5.5V; (8)Improved latch-up immunity.

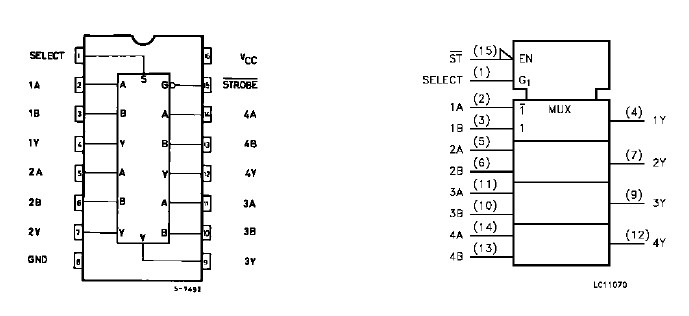

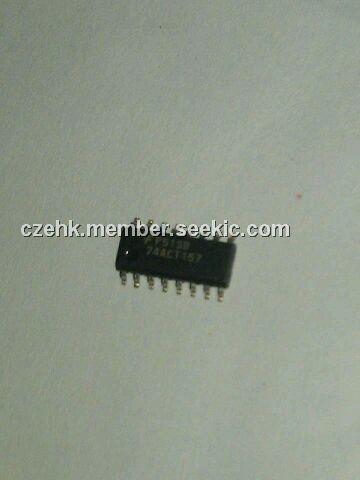

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 74ACT157M |
STMicroelectronics |
Encoders, Decoders, Multiplexers & Demultiplexers RO 511-74ACT157M-TR |
Data Sheet |
Negotiable |
|
||||
 |
74ACT157MTC |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers Qd 2-Inp Multiplexer |
Data Sheet |
Negotiable |
|
||||
 |
74ACT157MTCX_NL |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers FINISHED GOOD |
Data Sheet |
Negotiable |
|
||||
|
74ACT157MTCX |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers Qd 2-Inp Multiplexer |
Data Sheet |
Negotiable |
|
||||
|
74ACT157MTR |
STMicroelectronics |
Encoders, Decoders, Multiplexers & Demultiplexers Quad 2-Ch Multiplexr |
Data Sheet |
Negotiable |
|
||||
|
74ACT157MTC_Q |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers Qd 2-Inp Multiplexer |
Data Sheet |
Negotiable |
|
||||
