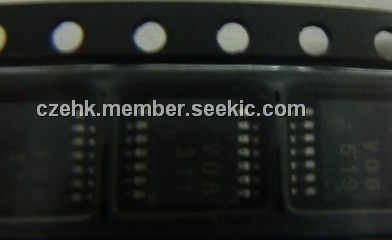

74VHC08

CMOS quad 2-input and gate, 2μA, 5.5V, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.16~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.16~0.30

PartNumber:: 74VHC08

Brand:: STMicroelectronics - ST | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. chen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-09

From Other Seller

Part Number:74VHC08
US $0.16 - 0.30
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 74VHC08 is an advanced high-speed CMOS QUAD 2-INPUT AND GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2 MOS technology. The internal circuit is composed of 2 stages including buffer output, which provide high noise immunity and stable output.Power down protection is provided on all inputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage. This device can be used to interface 5V to 3V.All inputs and outputs are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.

Parametrics

74VHC08 absolute maximum ratings: (1)supply voltage: -0.5 to 7V; (2)DC input voltage: -0.5 to 7V; (3)DC input diode current: -20mA; (4)storage temperature: -65 to 150℃; (5)lead temperature: 300℃.

Features

74VHC08 features: (1)high speed: tPD = 4.3 ns (TYP.) at VCC=5V; (2)low power dissipation: cc =2μA (MAX.) at TA =25°C; (3)high noise immunity:VNIH =VNIL =28%VCC (MIN.); (4)power down protection on inputs; (5)symmetrical output impedance:|I OH|=I OL= 8 mA (MIN); (6)balanced propagation delays:tPLH =~ tPHL; (7)operating voltage range:VCC (OPR) = 2V to 5.5V; (8)pin and function compatible with 74 SERIES 08; (9)improved latch-up immunity; (10)low noise: VOLP= 0.8V (Max.).
