Product Summary

The AD7304BRU-REEL7 is a rail-to-rail quad, 8-bit DAC. Internal precision buffers swing rail-to-rail. The reference input range
includes both supply rails allowing for positive or negative fullscale output voltages. Operation is guaranteed over the supply
voltage range of +2.7 V to +5.5 V, consuming less than 9 mW from a +3 V supply.

Parametrics

AD7304BRU-REEL7 absolute maximum ratings: (1)VDD to GND: -0.3 to 8V; (2)VSS to GND: 0.3 to -8V; (3)VREFX to GND: VSS; (4)IOUT short circuit to GND: 50mA; (5)thermal resistance: 103℃/W.

Features

AD7304BRU-REEL7 features: (1)Four 8-Bit DACs in One Package; (2)+3 V, +5 V and ±5 V Operation; (3)Rail-to-Rail REF-Input to Voltage Output Swing; (4)2.6 MHz Reference Multiplying Bandwidth; (5)Compact 1.1 mm Height TSSOP 16-/20-Lead Package; (6)Internal Power ON Reset; (7)SPI Serial Interface Compatible—AD7304; (8)Fast Parallel Interface—AD7305; (9)40μA Power Shutdown; (10)APPLICATIONS; (11)Automotive Output Span Voltage; (12)Instrumentation, Digitally Controlled Calibration; (13)Pin-Compatible AD7226 Replacement when VDD <5.5 V.

Diagrams

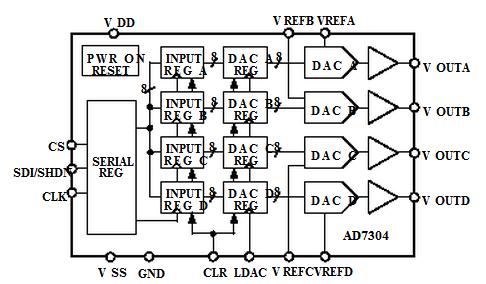

AD7304BRU-REEL7 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD7304BRU-REEL7
AD7304BRU-REEL7

IC DAC 8BIT QUAD R-R 16-TSSOP
Data Sheet
0-1000: $3.08
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD7302
AD7302
Other

Data Sheet
Negotiable
AD7302BN
AD7302BN

IC DAC 8BIT DUAL R-R 20-DIP
Data Sheet
Negotiable
AD7302BNZ
AD7302BNZ

IC DAC 8BIT DUAL R-R 20-DIP
Data Sheet
0-1: $3.52
1-10: $3.15
10-100: $2.58
100-250: $2.33
250-500: $2.09
500-1000: $1.76
1000-2500: $1.68
AD7302BR
AD7302BR

IC DAC 8BIT DUAL 2.7V 20-SOIC
Data Sheet
Negotiable
AD7302BR-REEL
AD7302BR-REEL
Analog Devices Inc.
IC DAC 8BIT DUAL R-R 20-SOIC
Data Sheet
Negotiable
AD7302BR-REEL7
AD7302BR-REEL7

IC DAC 8BIT DUAL R-R 20-SOIC
Data Sheet
0-1: $3.16
1-10: $2.84
10-25: $2.58
25-100: $2.34
