AT24C02BN-SH-T

two-wire serial EEPROM, 5mA, 6.25V, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.12~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.12~0.50

PartNumber:: AT24C02BN-SH-T

Brand:: ATMEL Corporation - ATMEL | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. chen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-09

From Other Seller

Part Number:AT24C02BN-SH-T
US $0.12 - 0.50
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

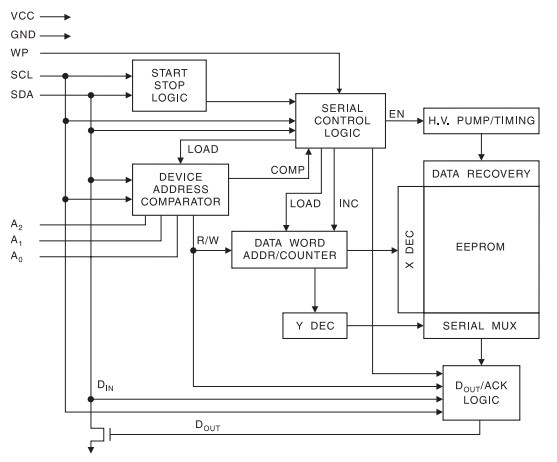

The AT24C02BN-SH-T is a two-wire serial EEPROM. It provides 2048 bits of serial electrically erasable and programmable aread-only memory (EEPROM)organized as 256 words of 8bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-volt age operation are essential. TheAT24C02B is available in space-s aving,8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Mini-MAP (MLP 2×3) , 5-lead SOT23, 8-lead TSSOP, and 8-ball dBGA2 packages and is accessed via a Two-wire serial interf ace.In a ddition, the AT24C02B is available in 1. 8 V (1.8V to 5.5V) version.

Parametrics

AT24C02BN-SH-T absolute maximum ratings: (1)opeating temperature: -55 to 125℃; (2)storage temperature: -65 to 150℃; (3)voltage on any pin with respect to ground: -1 to 7V; (4)maximum operating voltage: 6.25V; (5)DC output current: 5mA.

Features

AT24C02BN-SH-T features: (1)Low-voltage and Standard-voltage Operation:– 1.8 (VCC= 1.8V to 5.5V); (2)Internally Organized 256 × 8 (2K); (3)Two-wire Serial Interface; (4)Schmitt Trigger, Filtered Inputs for Noise Suppression; (5)Bidirectional Data Transfer Protocol; (6)1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility; (7)Write Protect Pin for Hardware Data Protection; (8)8-byte Page (2K) Write Modes; (9)Partial Page Writes Allowed; (10)Self-timed Write Cycle (5 ms max); (11)High-reliability: Endurance=1 Million Write Cycles;Data Retention=100 Years; (12)8-lead PDIP, 8-lead JEDEC SOIC, 8-lead Mini-MAP (MLP 2×3), 5-lead SOT23,8-lead TSSOP and 8-ball dBGA2 Packages; (13)Lead-free/Halogen-free; (14)Die Sales: Wafer Form, Waffle Pack and Bumped Wafers
