Product Summary

The BAT74 is a Schottky barrier double diode. Two separate dies encapsulated in a SOT143 small plastic SMD package.

Parametrics

BAT74 absolute maximum ratings: (1)reverse voltage: 30V; (2)forward current: 200mA; (3)repetitive peak forward current: 300mA; (4)total power dissipation: 230mW; (5)junction temperature: 125℃; (6)ambient temperature: -65 to 125℃; (7)storage temperature: -65 to 150℃.

Features

BAT74 features: (1)Low forward voltage; (2)Guard ring protected; (3)Small SMD package.

Diagrams

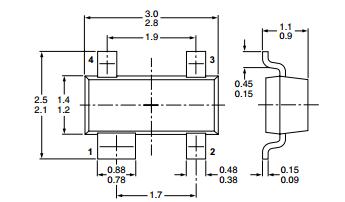

BAT74 block diagram
