Product Summary

The BTA08-600B is a logic level and standard triac. Available either in through-hole or surface-mount packages, the BTA08, BTB08 and T8 triac series is suitable for general pur pose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation,induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers. The snubberless versions (BTA/BTB...W and T8 series) are specially recommended for use on inductive loads, thanks to their high commutation performances.Logic level versions are designed to interface directly with low power drivers such as microcontrollers.By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500 VRMS)complying with UL standards (file ref.: E81734).

Parametrics

BTA08-600B absolute maximum ratings: (1)on-state rms current: 8A; (2)non repetitive surge peak on-state current: 80A; (3)peak gate current: 4A; (4)storage temperature range: -40 to 150℃.

Features

BTA08-600B features: (1)On-state rms current, IT(RMS)8 A; (2)Repetitive peak off-state voltage, VDRM/VRRM 600 to 800 V; (3)Triggering gate current, IGT (Q1) 5 to 50 mA.

Diagrams

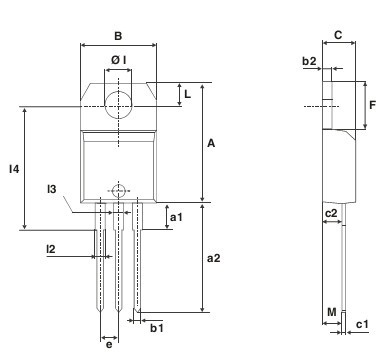

BTA08-600B block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BTA08-600BRG
BTA08-600BRG
STMicroelectronics
Triacs 8.0 Amp 600 Volt
Data Sheet
0-1: $0.79
1-10: $0.63
10-100: $0.56
100-250: $0.49
BTA08-600BW3G
BTA08-600BW3G
ON Semiconductor
Triacs 8A 50mA 600V IGT 3 QUAD INTERNL ISLTD
Data Sheet
0-1: $0.57
1-25: $0.46
25-100: $0.40
100-250: $0.35
BTA08-600BWRG
BTA08-600BWRG
STMicroelectronics
Triacs 8 Amp 600 Volt
Data Sheet
0-1: $0.59
1-10: $0.52
10-100: $0.48
100-250: $0.43
