Product Summary

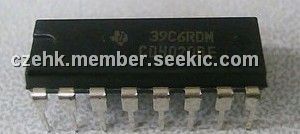

CD4020B is ripple-carry binary counters . All counter stages are master-slave flip-flops. The state of a counter advances one count on the negative transition of each input pulse; a high level on the Reset line resets the counter to its all zeros state. Schmitt trigger action on the input-pulse line permits unlimited rise and fall times . All inputs and outputs and are buffered . The CD020B type are supplied in 16-lead hermetic dual-in-line ceramic packages(F3A suffix),16-lead dual-in-line plastic packages(E suffix), 16-lead small-outline packages(NSR suffix),and 16-lead thin shrink small-outline packages(PW and PWR suffixeds).

Features

(1)Medium-speed operation; (2)Fully static operation; (3)Buffered inputs and outputs; (4)100% tested for quiescent current at 20V; (5)Standardized,symmetrical output characteristics; (6)Fully static operation; (7)Common reset; (8)5-V,10-V,and 15-V parametric ratings; (9)Maximum input current of 1μA at 18V over full package-temperature range;100nA at 18V and 25°C; (10)Noise margin (over full package-temperature range):1V at VDD=5V,2V at VDD=10V,2.5V at VDD=15V; (11)Meets all requirements of JEDEC Tentative Standard No.13B,"Standard Speclflcmlcons for Descrlption of B serles CMOS Devices"

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/2012726954118.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CD4020BE
CD4020BE

Texas Instruments

Counter ICs 14-Bit Ripple-Carry

Data Sheet

0-1: $0.27
1-25: $0.23
25-100: $0.17
100-250: $0.17
CD4020BEE4
CD4020BEE4

Texas Instruments

Counter ICs 14-Bit Ripple-Carry

Data Sheet

0-1: $0.30
1-25: $0.23
25-100: $0.20
100-250: $0.13
