MC14584BDR2G

Hex Schmitt Trigger, SOIC, -0.5 to +18.0 V, ±10 mA, 500mW, MC14584BDR2G

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~0.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~0.70

PartNumber:: MC14584BDR2G

Brand:: ON Semiconductor - ON | Pack: SOIC | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. chen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-29

From Other Seller

Part Number:MC14584BDR2G
US $0.15 - 0.70
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

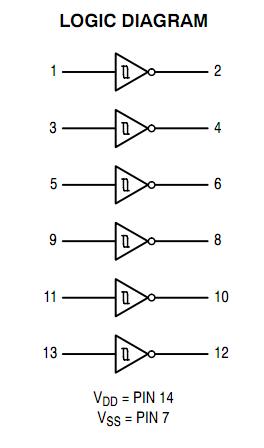

The MC14584BDR2G is a Hex Schmitt Trigger. The MC14584BDR2G is constructed with MOS P-channel and N-channel enhancement mode devices in a single monolithic structure. The device finds primary use where low power dissipation and/or high noise immunity is desired. The MC14584BDR2G may be used in place of the MC14069UB hex inverter for enhanced noise immunity to square up slowly changing waveforms.

Parametrics

MC14584BDR2G absolute maximum ratings: (1)VDD, DC Supply Voltage Range: -0.5 to +18.0 V; (2)Vin, Vout, Input or Output Voltage Range (DC or Transient): -0.5 to VDD + 0.5 V; (3)Iin, Iout, Input or Output Current (DC or Transient) per Pin: ±10 mA; (4)PD, Power Dissipation, per Package: 500 mW; (5)TA, Ambient Temperature Range: -55 to +125℃; (6)Tstg, Storage Temperature Range: -65 to +150℃; (7)TL, Lead Temperature (8-Second Soldering): 260℃.

Features

MC14584BDR2G features: (1)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (2)Capable of Driving Two Low?power TTL Loads or One Low-power Schottky TTL Load over the Rated Temperature Range; (3)Double Diode Protection on All Inputs; (4)Can Be Used to Replace MC14069UB; (5)For Greater Hysteresis, Use MC14106B which is Pin-for-Pin Replacement for CD40106B and MM74Cl4; (6)Pb-Free Packages are Available.
