Product Summary

The FDS8962C is a dual N & P-channel powertrench mosfet. The FDS8962C is produced using Fairchild Semiconductor advanced PowerTrench process that has been especially tailored to minimize on-state ressitance and yet maintain superior switching performance. The FDS8962C is well suited for low voltage and battery powered applications where low in-line power loss and fast switching are required.

Parametrics

FDS8962C absolute maximum ratings: (1)VDSS Drain-Source Voltage 30 -30 V; (2)VGSS Gate-Source Voltage: ±20 ±20 V; (3)TJ, TSTG Operating and Storage Junction Temperature Range: -55 to +150℃.

Features

FDS8962C features: (1)Q1:N-Channel 7.0A, 30V R DS(on)= 0.030Ω @ VGS= 10V; RDS(on)= 0.044Ω @ VGS= 4.5V; (2)Q2:P-Channel -5A, -30V RDS(on)= 0.052Ω@ VGS= -10V; RDS(on)= 0.080Ω@ VGS= -4.5V; (3)Fast switching speed; (4)High power and handling capability in a widely used surface; (5)mount package.

Diagrams

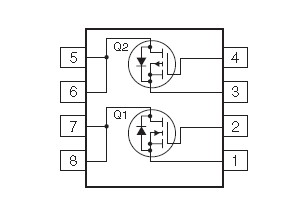

FDS8962C pin connection
