Product Summary

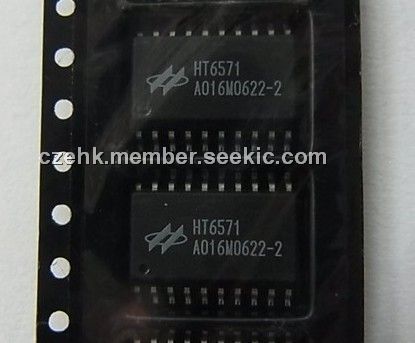

The HT6571 is a CMOS device containing three RS-232 line drivers, and five RS-232 line receivers that are used to interface data terminal equipment (DTE) with data circuit-terminating equipment (DCE).
Parametrics
HT6571 absolute maximum ratings: (1)Supply Voltage (VSS VDD) :-15V to 15V ; (2)Supply Voltage (GND VCC) :-0.3V to 5.5V; (3)Input Voltage Driver :0V to 7V; (4)Receiver :-15V to 15V; (5)Output Voltage Driver :-15V to 15V ; (6)Receiver :0V to 7V.
Features
HT6571 features: (1)Single-chip with easy interface between UART and serial port connector; (2)Three drivers and five receivers meet or exceed the requirements of EIA/TIA-232-D; (3)Designed to support data rates up to 120 Kbit/s; (4)Driver current-limited output: 25mA typ.; (5)Flexible supply voltage range; (6)ESD protection exceeds 5kV; (7)20-pin SOP package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HT6571-2.0 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
HT6571 |
Other |
|
Data Sheet |
Negotiable |
|
||||
