Product Summary
The TPD4102K is a DC brush less motor driver using high voltage PWM control. The TPD4102K is fabricated by high voltage SOI process. It contains PWM circuit, 3-phase decode logic, level shift high-side driver, low-side driver, IGBT outputs, FRDs, over current and under voltage protection circuits, and thermal shutdown circuit. It is easy to control a DC brush less motor by applying a signal from a motor controller and a hole IC to the TPD4102K.
Parametrics
TPD4102K absolutem aximum ratings: (1)Power supply voltage, VBB: 500 V; VCC: 20 V; (2)Output current (DC), Iout: 1 A; (3)Output current (pulse), Iout: 2 A; (4)Input voltage (except VS), VIN: -0.5 to VREG + 0.5 V; (5)Input voltage (only VS), VVS: 8.2 V; (6)VREG current, IREG: 50 mA; (7)Power dissipation (Ta = 25℃), PC: 4 W; (8)Power dissipation (Tc = 25℃), PC: 20 W; (9)Operating junction temperature, Tjopr: -20 to 135℃; (10)Junction temperature Tj: 150℃; (11)Storage temperature Tstg -55 to 150℃; (12)Lead-heat sink isolation voltage Vhs 1000 (1 min) Vrms.
Features
TPD4102K features: (1)Bootstrap circuit gives simple high side supply; (2)Bootstrap diode is built in; (3)PWM and 3-phase decoder circuit are built in; (4)Outputs Rotation pulse signals; (5)3-phase bridge output using IGBTs; (6)FRDs are built in; (7)Incorporating over current and under voltage protection, and thermal shutdown; (8)Package: 23-pin HZIP.

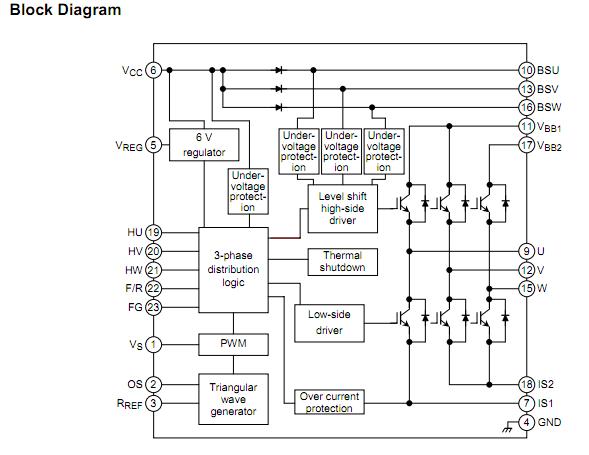

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
TPD4102K |
Other |
Data Sheet |
Negotiable |
|
||||||
