IP2003ATRPBF

integrated power semiconductor, 40A, 0.8 to 3.3 V, LGA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.35~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.35~2.00

PartNumber:: IP2003ATRPBF

Brand:: International Rectifier - IR | Pack: LGA | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. chen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-03

From Other Seller

Part Number:IP2003ATRPBF
US $1.35 - 2.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

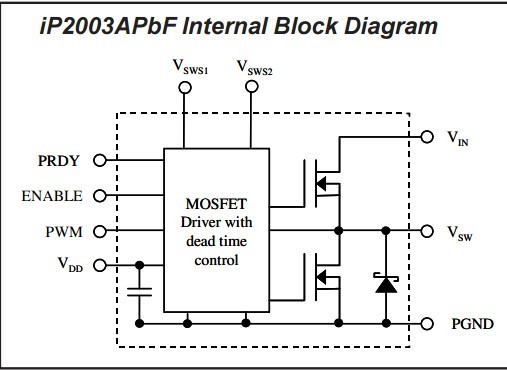

The IP2003ATRPBF is an integrated power semiconductor. It is fully optimized solution for high current synchronous buck multiphase applications.Board space and design time are greatly reduced because most of the components required for each phase of a typical discrete-based multiphase circuit are integrated into a single 9mm*11mm*2.2mm power block.The only additional components required for a complete multiphase converter are a PWM controller, the output inductors,and the input and out capacitors.

Parametrics

IP2003ATRPBF absolute maximum ratings: (1)VIN to PGND: 16V; (2)VDD to PGND: 6V; (3)PWM to PGND: VDD+0.3V; (4)Enable to PGND: VDD+0.3V; (5)output RMS current: 40A.

Features

IP2003ATRPBF features: (1)Full function multiphase building block; (2)Output current 40A continuous with no derating up to Tpcb=100°C and Tcase=100°C; (3)Operating frequency up to 1.0MHz; (4)Proprietary packaging enables ultra low RTHj-case tip; (5)Efficient dual sided cooling; (6)Small footprint low profile(9mm*11mm*2.2mm)Package; (7)Optimized for very low power losses; (8)LGA interface; (9)Ease of design.
