Product Summary
The IRF9240 is an advanced power MOSFET designed,tested, and guaranteed to withstand a specified level of energy in the breakdown avalanche mode of operation. The IRF9240 is designed for applications such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high power bipolar switching transistors requiring high speed and low gate drive power. The IRF9240 can be operated directly from integrated circuits.
Parametrics
IRF9240 absolute maximum ratings: (1)Drain to Source Breakdown Voltage: VDS -200 V; (2)Drain to Gate Voltage (RGS = 20kW): VDGR -200 V; (3)Continuous Drain Current ID= -11A; TC = 100oC ID=-7A; (4)Pulsed Drain Current IDM: -44 A; (5)Gate to Source Voltage: VGS ±20 V; (6)Maximum Power Dissipation PD: 125 W; (7)Linear Derating Factor: 1 W/℃; (8)Single Pulse Avalanche Energy Rating: EAS 790 mJ; (9)Operating and Storage Temperature TJ, TSTG: -55 to 150℃; (10)Maximum Temperature for Soldering:Leads at 0063in (16mm) from Case for 10s TL=300 ℃; (11)Package Body for 10s, See Techbrief 334 Tpkg=260℃.
Features
IRF9240 features: (1)-11A, -200V; (2)rDS(ON) = 0.500 Ω; (3)Single Pulse Avalanche Energy Rated; (4)SOA is Power Dissipation Limited; (5)Nanosecond Switching Speeds; (6)Linear Transfer Characteristics; (7)High Input Impedance; (8)Related Literature; (9)- TB334, guidelines for Soldering Surface Mount; (10)Components to PC Boards.

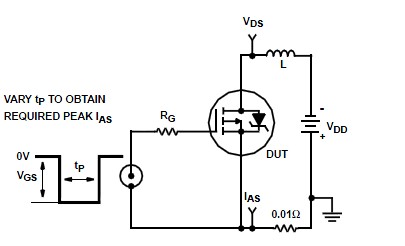

Diagrams
