Product Summary
The ISD1730PY is a single-chip voice record. The Winbond ISD1730PY ChipCorder Series is a high quality, fully integrated, single-chip multi-message voice record and playback device ideally suited to a variety of electronic systems. The ;message duration is user selectable in ranges from 26 seconds to 120 seconds, depending on the specific device. The sampling frequency of each device can also be adjusted from 4 kHz to 12 kHz with an external resistor, giving the user greater flexibility in duration versus recording quality for each application. Operating voltage spans a range from 2.4 V to 5.5 V to ensure that the ISD1730PY devices are optimized for a wide range of battery or line-powered applications.
Parametrics
ISD1730PY absolute maximum ratings: (1)Junction temperature: 150℃; (2)storage temperature range: -65 to 150℃; (3)voltage applied to any pads: VSS-0.3 to VCC+0.3V; (4)power supply voltage to ground potential; (5)junction temperature: 150℃; (6)power supply voltage to ground potential: -0.3 to 7V.
Features
ISD1730PY features: (1)message and operation indicators; (2)dual operating modes; (3)two individual input channels; (4)dual output channels; (5)chipcorder standard features; (6)high-quality, natural voice and audio reproduction.

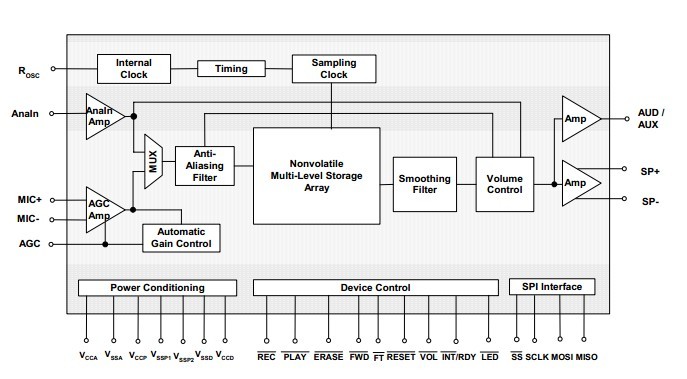

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISD1730PY |
|
IC VOICE REC/PLAY 30SEC 28-DIP |
Data Sheet |
|
|
||||||
|
ISD1730PYI |
|
IC VOICE REC/PLAY 30SEC 28-DIP |
Data Sheet |
|
|
||||||
