Product Summary

The ISD1760PY is a single-chip voice record. The Winbond ISD1730PY ChipCorder Series is a high quality, fully integrated, single-chip multi-message voice record and playback device ideally suited to a variety of electronic systems. The ;message duration is user selectable in ranges from 26 seconds to 120 seconds, depending on the specific device. The sampling frequency of each device can also be adjusted from 4 kHz to 12 kHz with an external resistor, giving the user greater flexibility in duration versus recording quality for each application. Operating voltage spans a range from 2.4 V to 5.5 V to ensure that the ISD1760PY devices are optimized for a wide range of battery or line-powered applications.

Parametrics

ISD1760PY absolute maximum ratings: (1)Junction temperature: 150℃; (2)storage temperature range: -65 to 150℃; (3)voltage applied to any pads: VSS-0.3 to VCC+0.3V; (4)power supply voltage to ground potential; (5)junction temperature: 150℃; (6)power supply voltage to ground potential: -0.3 to 7V.

Features

ISD1760PY features: (1)message and operation indicators; (2)dual operating modes; (3)two individualinput channels; (4)dual output channels; (5)chipcorder standard features; (6)high-quality, natural voice and audio reproduction.

Diagrams

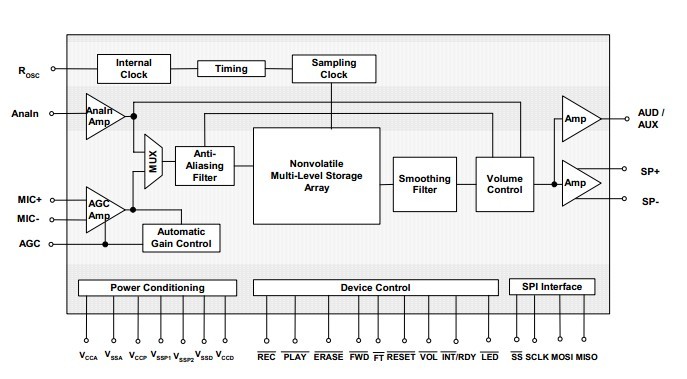

ISD1760PY block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ISD1760PY
ISD1760PY

IC VOICE REC/PLAY 60-SEC 28-DIP
Data Sheet
0-1: $4.51
1-10: $4.05
10-100: $3.33
100-250: $3.06
250-500: $2.79
500-1000: $2.43
1000-2500: $2.34
2500-5000: $2.28
