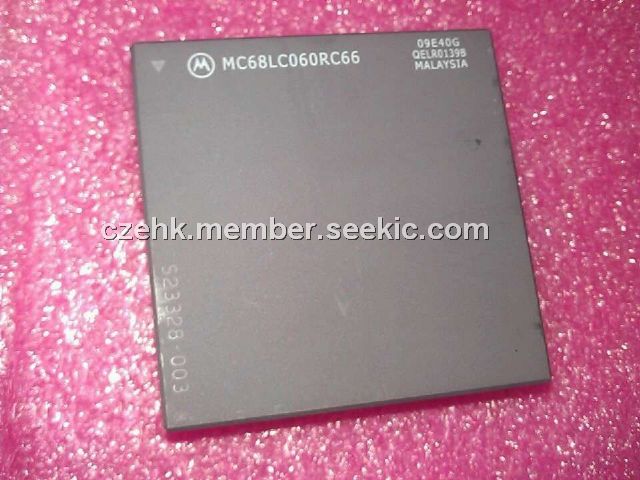

MC68LC060RC66

Product Summary

The MC68LC060RC66 is a new line of Motorola microprocessor. The first generation of the M68060 product line consists of the MC68060, MC68LC060, and MC68EC060. All three microprocessors offer superscalar integer performance of over 100 MIPS at 66 MHz. The MC68060 comes fully equipped with both a floating-point unit (FPU) and a memory management unit (MMU) for high-performance embedded control and desk-top applications. For cost-sensitive embedded control and desktop applications where an MMU is required, but the additional cost of a FPU is not justified, the MC68LC060 offers high-performance at a low cost. Specifically designed for low-cost embedded control applications, the MC68EC060 eliminates both the FPU and MMU, permitting designers to lever-age MC68060 performance while avoiding the cost of unnecessary features. Throughout this product brief, all references to the MC68060 also refer to the MC68LC060 and the MC68EC060, unless otherwise noted.

Parametrics

MC68LC060RC66 absolute maximum ratings: (1)supply voltage: 0.3 to 4V; (2)input voltage: -0.5 to VCC+4V; (3)maximum operating junction temperature: 110℃; (4)minimum operating ambient temperature: 0℃; (5)storage temperature range: -55 to 150℃.

Features

MC68LC060RC66 features: (1)1.6–1.7 Times the MC68040 Performance at the Same Clock Rate with Existing Com-pliers. 3.2–3.4 Times the Performance of a 25 MHZ MC68040.; (2)Harvard Architecture with Independent, Decoupled Fetch and Execution Pipelines.; (3)Branch Prediction Logic with a 256-Entry, 4-Way Set-Associative, Virtual-Mapped ,Branch Cache for Improved Branch Instruction Performance.; (4)A Superscalar Pipeline and Dual Integer Execution Units Achieving Simultaneous, but not Out-of-Order Instruction Execution.; (5)An IEEE Standard, MC68040- and MC68881-/MC68882-Compatible FPU.; (6)An MC68040-Compatible Paged Memory Management Unit with Dual 64-Entry ,Address Translation Caches; (7)Dual 8-Kbyte Caches (Instruction Cache and Data Cache); (8)A Flexible, High-Bandwidth Synchronous Bus Interface; (9)User Object-Code Compatible with All Earlier M68000 Microprocessors.

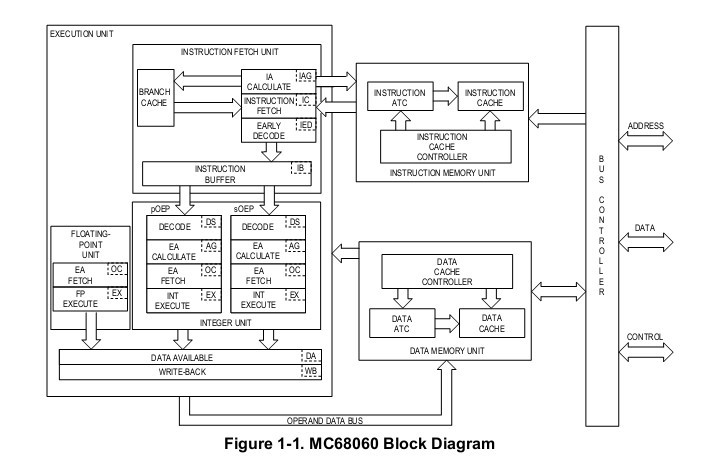

Diagrams
