Product Summary

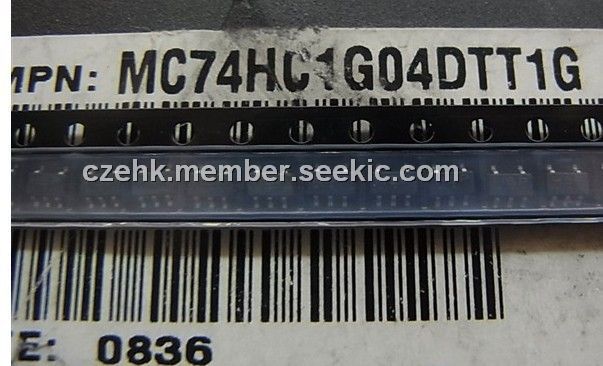

The MC74HC1G04DTT1G is a high speed CMOS inverter fabricated with silicon gate CMOS technology.; (2)The internal circuit is composed of multiple stages, including a buffer output which provides high noise immunity and stable output.; (4)The MC74HC1G04 output drive current is 1/2 compared to MC74HC series.
Parametrics
MC74HC1G04DTT1G absolute maximum ratings: (1)DC supply voltage: -0.5 to 7V; (2)input voltage: -0.5 to VCC+0.5V; (3)input diode current: 20mA; (4)output diode current: 20mA; (5)lead temperature: 260℃; (6)junction temperature under bias: 150℃.
Features
MC74HC1G04DTT1G features: (1)High Speed: tPD = 7 ns (Typ) at VCC = 5 V; (2)Low Power Dissipation: ICC= 1μA (Max) at TA= 25°C; (3)High Noise Immunity; (4)Balanced Propagation Delays (tpLH = tpHL); (5)Symmetrical Output Impedance (IOH= IOL= 2 mA); (6)Chip Complexity: FET = 105; (7)Pb-Free Packages are Available.

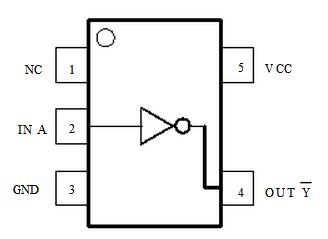

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC74HC1G04DTT1G |
ON Semiconductor |
Inverters 2-6V Single CMOS |
Data Sheet |
|
|
||||||||||||
