Product Summary

The MM74HCU04MX is a hex inverter. It utilizes advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. The MM74HCU04MX is an unbuffered inverter. It has high noise immunity and the ability to drive 15 LS-TTL loads. The 74HCU logic family is functionally as well as pinout compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by inter-nal diode clamps to VCC and ground.

Parametrics

MM74HCU04MX absolute maximum ratings: (1)Supply Voltage (VCC) :-0.5 to + 7.0V; (2)DC Input Voltage (VIN) :-1.5 to VCC + 1.5V; (3)DC Output Voltage (VOUT) :-0.5 to VCC + 0.5V; (4)Clamp Diode Current (IIK, IOK) ± 20 mA; (5)DC Output Current, per pin (IOUT) ± 25 mA; (6)DC VCC or GND Current, per pin (ICC) ± 50 mA; (7)Storage Temperature Range (TSTG) :-65° C to + 150 °C; (8)Power Dissipation (PD):(Note 3) 600 mW;S.O. Package only 500 mW; (9)Lead Temperature (TL):(Soldering 10 seconds) 260°C.

Features

MM74HCU04MX features: (1)Typical propagation delay: 7 ns; (2)Fanout of 15 LS-TTL loads; (3)Quiescent power consumption: 10 μA maximum at room; (4)temperature; (5)Low input current: 1μ A maximum.

Diagrams

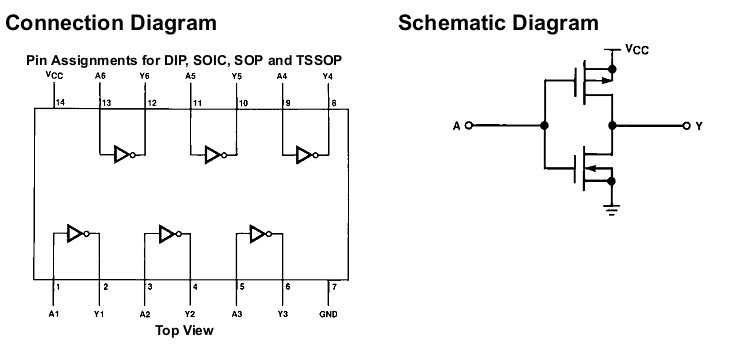

MM74HCU04MX block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MM74HCU04MX
MM74HCU04MX
Fairchild Semiconductor
Inverters Hex Inverter
Data Sheet
0-1: $0.33
1-25: $0.22
25-100: $0.18
100-250: $0.15
