Product Summary

The 78D05L is a 3-terminal positive voltage regulator.

Parametrics

78D05L absolute maximum ratings: (1)Input voltage, VI: 35V; (2)Output current, IO:0.5A; (3)Power dissipation, PD: internally limited; (4)Operating junction temperature range, TJ: 150℃; (5)Storage temperature range, TSTG: -65 to +150℃.

Features

78D05L features: (1)Output current up to 0.5 A; (2)Fixed output voltage of 5V, 6V, 8V, 9V, 12V,15V ,18V and 24V available; (3)Thermal overload shutdown protection; (4)Short circuit current limiting; (5)Output transistor SOA protection.

Diagrams

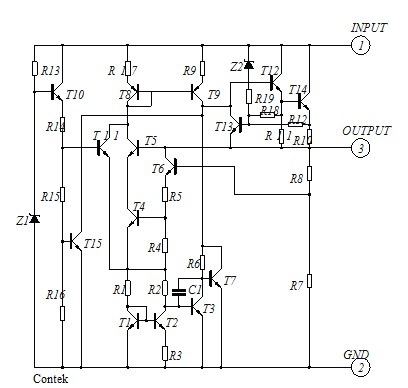

78D05L diagram
