Product Summary

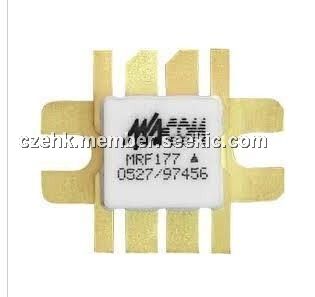

The MRF177 is a MOSFET line. Designed for broadband commercial and military applications up to 400 MHz frequency range. Primarily used as a driver or output amplifier in push–pull configurations. Can be used in manual gain control, ALC and modulation circuits.

Parametrics

MRF177 absolute maximum ratings: (1)drain-source voltage: 65V; (2)drain-gate voltage: 65V; (3)gate-source voltage: ±40V; (4)drain current: 16A; (5)Total device dissipation: 270W; (6)storage temperature range: -65 to 150℃; (7)operating temperature range: 200℃.

Features

MRF177 features: (1)Typical performance at 400 MHz, 28 V: Output power — 100 W ;Gain — 12 dB ; Efficiency — 60% (2)Low thermal resistance (3)Low Crss — 10 pF typ. @ VDS = 28 V (4)Ruggedness tested at rated output power ; (5) Nitride passivated die for enhanced reliability ;(6)Excellent thermal stability; suited for Class A operation.

Diagrams

MRF177 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MRF177
MRF177

M/A-COM Technology Solutions

Transistors RF MOSFET Power 5-400MHz 100Watts 28Volt Gain 12dB

Data Sheet
