Product Summary
The AD8616ARZ is a dual/quad, rail-to-rail, input and output, single-supply amplifier featuring very low offset voltage, wide signal bandwidth, and low input voltage and current noise. The parts use a patented trimming technique that achieves superior precision without laser trimming. The AD8616ARZ is fully specified to operate from 2.7 V to 5 V. Applications for the AD8616ARZ include portable and low powered instrumentation, audio amplification for portable devices, portable phone headsets, bar code scanners, and multipole filters.
Parametrics
AD8616ARZ absolute maximum ratings: (1)Supply Voltage: 6 V ; (2)Input Voltage: GND to VS; (3)Differential Input Voltage: ±3 V ; (4)Output Short-Circuit Duration to GND: Indefinite ; (5)Storage Temperature: –65 to +150℃; (6)Operating Temperature Range: –40 to +125℃ ; (7)Lead Temperature Range (Soldering 60 sec): 300℃ ; (8)Junction Temperature: 150℃.
Features
AD8616ARZ features: (1)Low offset voltage: 65 μV max; (2)Single-supply operation: 2.7 V to 5.5 V; (3)Low noise: 8 nV/√Hz; (4)Wide bandwidth: >20 MHz; (5)Slew rate: 12 V/μs; (6)High output current: 150 mA; (7)No phase reversal; (8)Low input bias current: 1 pA; (9)Low supply current: 2 mA; (10)Unity-gain stable.

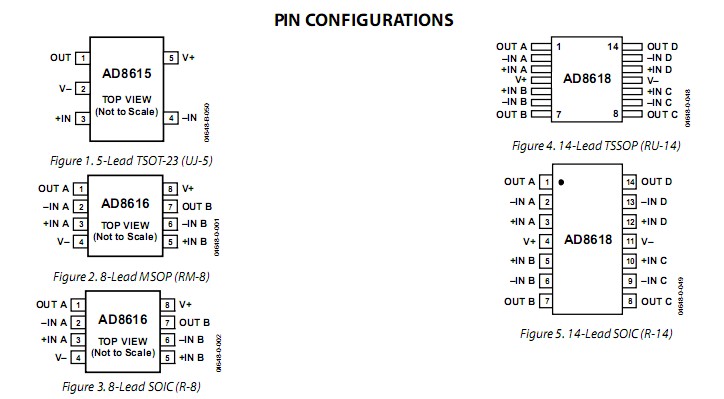

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8616ARZ |
|
IC OPAMP GP R-R CMOS 24MHZ 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD8616ARZ-REEL |
|
IC OPAMP GP R-R CMOS 24MHZ 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD8616ARZ-REEL7 |
|
IC OPAMP GP R-R CMOS 24MHZ 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
