Product Summary
The TD62784FG is a 8ch high-voltage source driver. It is comprised of eight source current Transistor Array. These drivers are specifically designed for fluorescent display applications . Applications incule relay , hammer and lamp drivers.
Parametrics
TD62784FG absolute maximum ratings: (1)Supply Voltage: 35V; (2)Output Current: -500mA/ch; (3)Input Voltage: 30V; (4)Clamp Diode Reverse Voltage: 35V; (5)Clamp Diode Forward Current: 500mA; (6)Power Dissipation : 0.96W; (7)Operating Temperature: -40 to 85°C; (8)Storage Temperature: -55 to 150°C.
Features
TD62784FG features: (1)High output voltage :VCC=35V MIN; (2)Output current(single output)out=-500mA MIN; (3)Output clamp diodes; (4)Single supply voltage; (5)Input compatible with various types of logic; (6)Package:SOP-18pin.

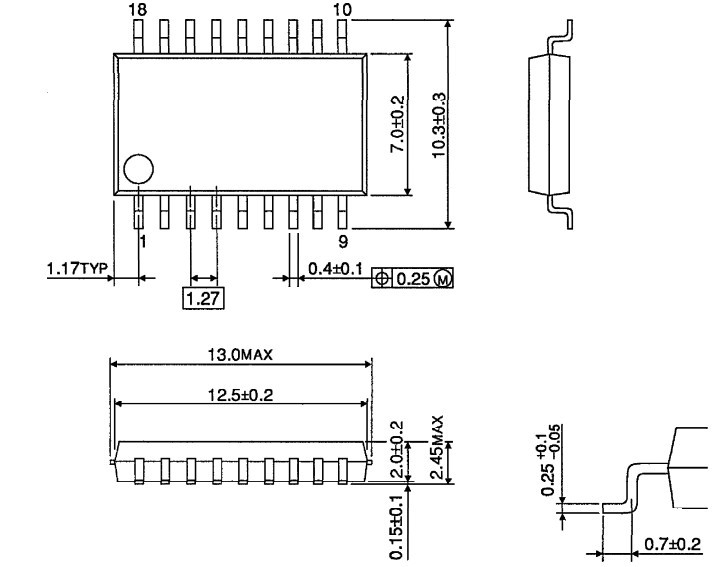

Diagrams
 |
