Product Summary

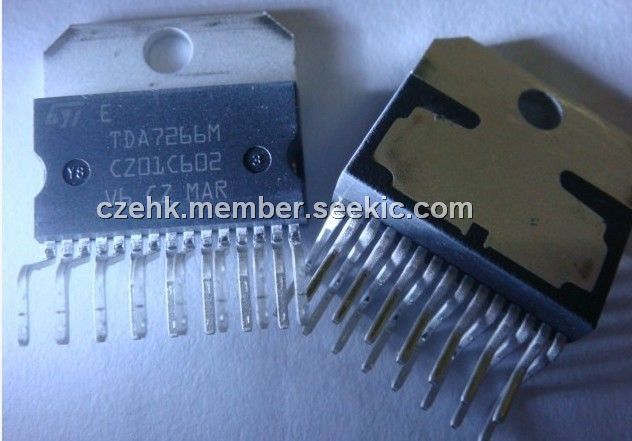

The TDA7266M is a mono bridge amplifier specially designed for TV and Portable Radio applications.
Parametrics
TDA7266M absolute maximum ratings: (1)Supply Voltage : 20 V; (2)Output Peak Current (internally limited) :2 A; (3)Total Power Dissipation (T case=70°C) :33 W; (4)Operating Temperature : 0 to 70 ° C; (5)Storage and Junction Temperature : -40 to +150°C.
Features
TDA7266M features: (1)wide supply voltage range (3-18V); (2)minimum external components:– wo swr capacotor;– no bootstra;– no boucherot cells;– internally fixed gain; (3)stand-by & mute functions; (4)short circuit protection; (5)thermal overload protection.

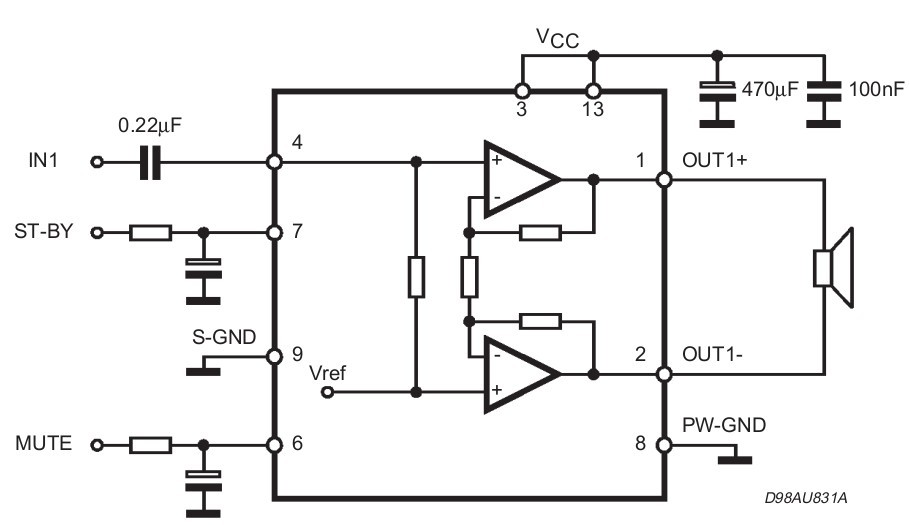

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA7266M |
STMicroelectronics |
Audio Amplifiers 7W MONO BRIDGE AMP |
Data Sheet |
|
|
||||||||||||
