Product Summary
The TIP137 is a complementary silicon power darlington transistor. It is intended for use in power linear and switching applications.
Parametrics
TIP137 absolute maximum ratings: (1)collector-base voltage: 100V; (2)emitter-base voltage: 5V; (3)collector current: 8A; (4)collector peak current: 12A; (5)base current: 0.3A; (6)total dissipation: 70W.
Features
TIP137 features: (1)collector cut-off current: 0.5mA; (2)emitter cur-off current: 5mA; (3)base-emitter voltage: 2.5W.

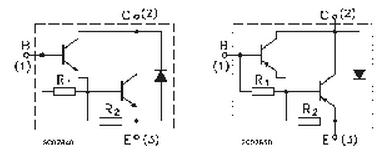

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIP137 |
STMicroelectronics |
Transistors Darlington PNP Power Darlington |
Data Sheet |
|
|
||||||||||||
|
TIP137G |
ON Semiconductor |
Transistors Darlington 4A 100V Bipolar Power PNP |
Data Sheet |
Negotiable |
|
||||||||||||
 |
TIP137-S |
Bourns |
Transistors Darlington PNP DARLINGTON 100V 8A |
Data Sheet |
Negotiable |
|
||||||||||||
