Product Summary
The TLP741G is a TOSHIBA photocoupler. It consists of a photo-thyristor optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP package.
Parametrics
TLP741G absolute maximum ratings: (1)forward current: 60mA; (2)forward current derating: -0.7mA/℃; (3)peak forward current: 1A; (4)power dissipation: 100mW; (5)reverse voltage: 5V; (6)junction temperature: 125℃; (7)peak forward voltage: 400V.
Features
TLP741G features: (1)Peak off-state voltage: 400V(min.) ; (2)Trigger LED current: 1 0mA(max.); (3)On state current: 1 50mA(max.) ; (4)UL recognized: UL1577, file no. E67349; (5)BSI approved: BS EN60065: 1994;Certificate no. 6617;BS EN60950: 1992 ;Certificate no. 7366; (6)Isolation voltage: 4000Vrms(min.); (7)Option (D4) type :VDE approved: DIN VDE0884/08, 87 ;Certificate no. 65640;Maximum operating insulation voltage: 630V PK;Highest permissible over voltage: 6000V PK.

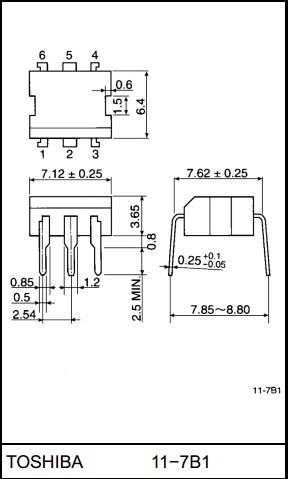

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP741G |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
TLP741G(D4,N,F) |
|
PHOTOCOUPLER SCR-OUT 6-DIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP741G(D4-LF2,N,F |
Toshiba |
Triac & SCR Output Optocouplers THYRISTOR PHOTOCOUPLER |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP741G(D4-LF4,N,F |
Toshiba |
Triac & SCR Output Optocouplers THYRISTOR PHOTOCOUPLER |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP741G(D4-TAIE) |
|
PHOTOCOUPLER SCR-OUT 6-DIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP741G(N) |
|
PHOTOCOUPLER SCR-OUT 6-DIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLP741G(N,F) |
Toshiba |
Triac & SCR Output Optocouplers 400Vdrm 4000Vrms |
Data Sheet |
|
|
||||||||||||
|
TLP741G(TAIE,N) |
|
PHOTOCOUPLER SCR-OUT 6-DIP |
Data Sheet |
Negotiable |
|
||||||||||||
