Product Summary

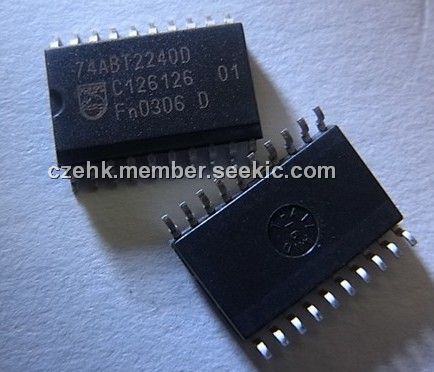

The 74ABT2240 is an octal inverting buffer with 30Ω series termination resistors. The high-performance BiCMOS device combines low static and dynamic power dissipation with high speed. The 74ABT2240 device is an octal inverting buffer that is ideal for driving bus lines. The device features two Output Enables (1OE,2OE), each controlling four of the 3-State outputs. The 74ABT2240 is designed with 30 ? series resistance in both the High and Low states of the output. This design reduces line noise in applications such as memory address drivers, clock drivers and bus receivers/transmitters.
Parametrics
74ABT2240D absolute maximum raings: (1)DC supply voltage: -0.5 to 7V; (2)DC input diode current: -18mA; (3)DC input voltage: -1.2 to 7V; (4)DC output diode current: -50mA; (5)DC output current: 128mA; (6)storage temperature range: -65 to 150℃.
Features
74ABT2240D features: (1)Octal bus interface; (2)3-State buffers; (3)Live insertion/extraction permitted; (4)Outputs include series resistance of 30?, making external termination resistors unnecessary; (5)Output capability: +12mA/–32mA; (6)Latch-up protection exceeds 500mA per Jedec Std 17; (7)ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200 V per Machine Model; (8)Power-up 3-State; (9)Same part as 74ABT240-1.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 74ABT2240D |
NXP Semiconductors |
Buffers & Line Drivers OCT BUF INV 3-S W 30 OHM RES |
Data Sheet |
Negotiable |
|
||||
 |
74ABT2240D,112 |
|
IC INVERTER DUAL 4-INPUT 20SOIC |
Data Sheet |
Negotiable |
|
||||
|
74ABT2240D,118 |
NXP Semiconductors |
Buffers & Line Drivers OCT BUF INV 3-S W 30 |
Data Sheet |
Negotiable |
|
||||
|
74ABT2240D-T |
NXP Semiconductors |
Buffers & Line Drivers OCT BUF INV 3-S W 30 OHM RES |
Data Sheet |
Negotiable |
|
||||
