Product Summary

The AD590KH is a 2-terminal integrated circuit temperature transducer that produces an output current proportional to absolute temperature. For supply voltages between 4V and 30V the device acts as a high-impedance, constant current regula torpassing 1 μA/ K. Laser trimming of the chip’s thin-film resistors is used to calibrate the device to 298.2μA output a t 298.2 K (25°C). The AD590 should be used in any temperature-sensing application below 150 °C in which conventionalel ectrical temperature sens ors are currently employed.

Parametrics

AD590KH absolute maximum ratings: (1)forward voltage: 44V; (2)reverse voltage: -20V; (3)breakdown voltage: ±200V; (4)rated performance temperature range: -55 to 150℃; (5)storage temperature range: -65 to 155℃; (6)lead temperature: 300℃.

Features

AD590KH features: (1)Linear current outpu t: 1 μA/K; (2)Wide temperature range: -55°C to + 150°C ; (3)Probe co mpatible ceramic sensor package ; (4)2-terminal device: voltage in/current out; (5)Laser trimmed to ±0.5°C calibration accuracy (AD590M); (6)Excellent linear it y: ±0.3°C over full range (AD 590M); (7)Wide power supply range: 4V to 30V; (8)Sensor isolation from case; (9)Low cost.

Diagrams

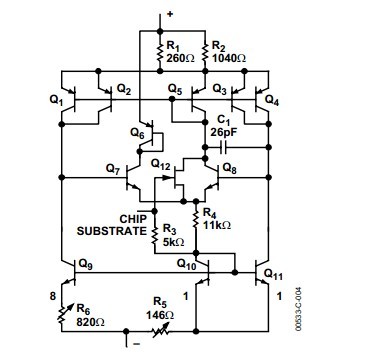

AD590KH block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD590KH
AD590KH

IC TEMP TRANSDUCER 2-TERM TO52-3
Data Sheet
0-1: $7.60
1-10: $6.91
10-100: $5.88
100-250: $5.36
250-500: $5.01
500-1000: $4.61
