L6225N

L6225N, dual DMOS full bridge motor driver, DIP, 60V, 3.55A, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.30~3.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.30~3.60

PartNumber:: L6225N

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. chen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-24

From Other Seller

Part Number:L6225N
US $3.30 - 3.60
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

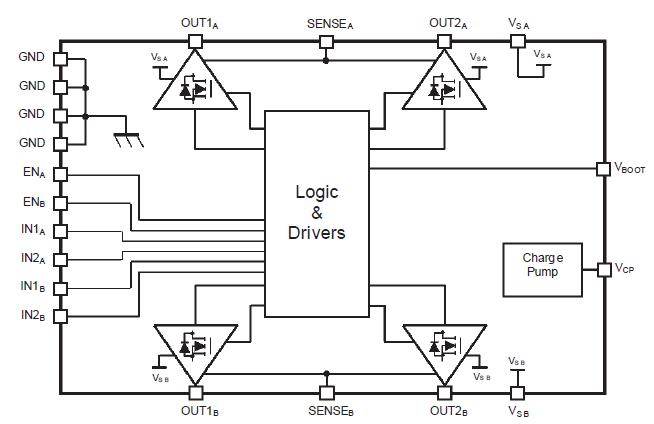

The L6225N is a dual full bridge driver for motor control applications manufactured with Multipower BCD technology which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. The Logic Inputs are CMOS/TTL and μP compatible. The High Side switches are protected against unsafe over current conditions. The applications of the L6225N include stepper motor, dual or quad dc motor.

Parametrics

L6225N absolute maximum ratings: (1)VS, Supply Voltage: 60 V; (2)VIN,VEN, Input and Enable Voltage Range: -0.3 to +7 V; (3)VSENSE, DC Sensing Voltage Range: -1 to +4 V; (4)VBOOT, Bootstrap Peak Voltage: VS + 10 V; (5)IS(peak), Pulsed Supply Current (for each VS pin), internally limited by the overcurrent protection, tPULSE < 1ms: 3.55 A; (6)IS, DC Supply Current (for each VS pin): 1.4 A; (7)VOD, Differential Voltage Between VSA, OUT1A, OUT2A, SENSEA and; (8)VS B, OUT1B, OUT2B, SENSEB: 60 V; (9)Tstg, TOP, Storage and Operating, Temperature Range: -40 to 150℃.

Features

L6225N features: (1)Operating supply voltage from 8 to 52V; (2)2.8A peak current (1.4A DC); (3)RDS (ON) 0.73W TYP. value @ Tj = 25℃; (4)Cross conduction protection; (5)Thermal shutdown; (6)Operating frequency up to 100khz; (7)High side over current protection; (8)CMOS/TTL input; (9)Intrinsic fast free wheeling diodes; (10)Under voltage lockout.
