Product Summary

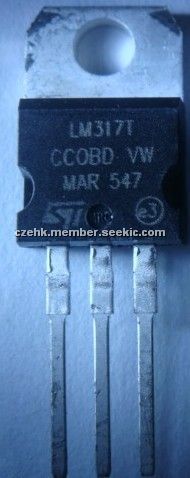

The LM317T is an adjustable voltage regulator. It is intended for use as positive adjustable voltage regulators. They are designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by means of only a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.
Parametrics
LM317T absolute maximum ratings: (1)input-output voltage differential: 40V; (2)storage temperature: -65 to 150℃; (3)lead temperature: 300℃; (4)plastic package temperature: 260℃.
Features
LM317T features: (1)Output voltage range: 1.2 to 37 V; (2)Output current in excess of 1.5 A; (3)0.1% Line and load regulation; (4)Floating operation for high voltages; (5)Complete series of protections: curren t limiting, thermal shutdown and SOA control.

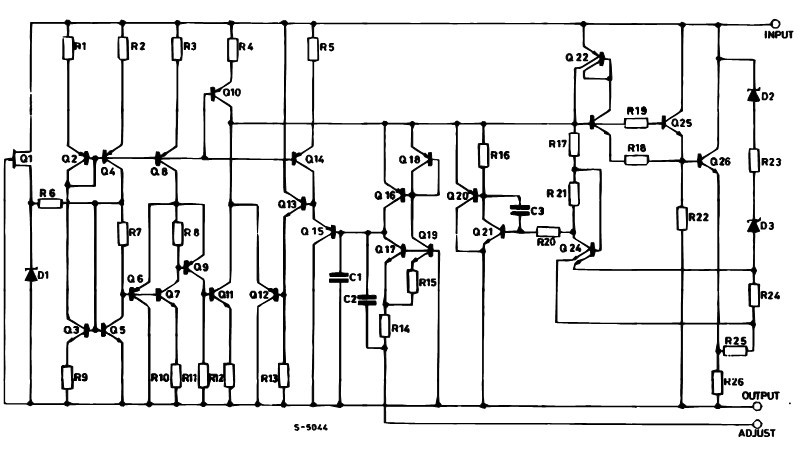

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM317T |
STMicroelectronics |
Linear Regulators - Standard 1.2-37V Adj Positive 1.5 Amp Output |
Data Sheet |
|
|
||||||||||||
 |
LM317T/LB01 |
National Semiconductor (TI) |
Linear Regulators - Standard |
Data Sheet |
|
|
||||||||||||
|
LM317T/LF01 |
National Semiconductor (TI) |
Linear Regulators - Standard |
Data Sheet |
|
|
||||||||||||
|
LM317T-DG |
STMicroelectronics |
Linear Regulators - Standard Dual Guage ADJ 1.2V to 37V 1.5A |
Data Sheet |
|
|
||||||||||||
|
LM317TG |
ON Semiconductor |
Linear Regulators - Standard 1.5A ADJ 1.2-37V Positive |
Data Sheet |
|
|
||||||||||||
|
LM317T_Q |
Fairchild Semiconductor |
Linear Regulators - Standard 1.5A Adj Voltage Regulator |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM317T/NOPB |
National Semiconductor (TI) |
Linear Regulators - Standard 3-TERMINAL ADJ REG |
Data Sheet |
|
|
||||||||||||
|
LM317T (KA317) |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
