Product Summary

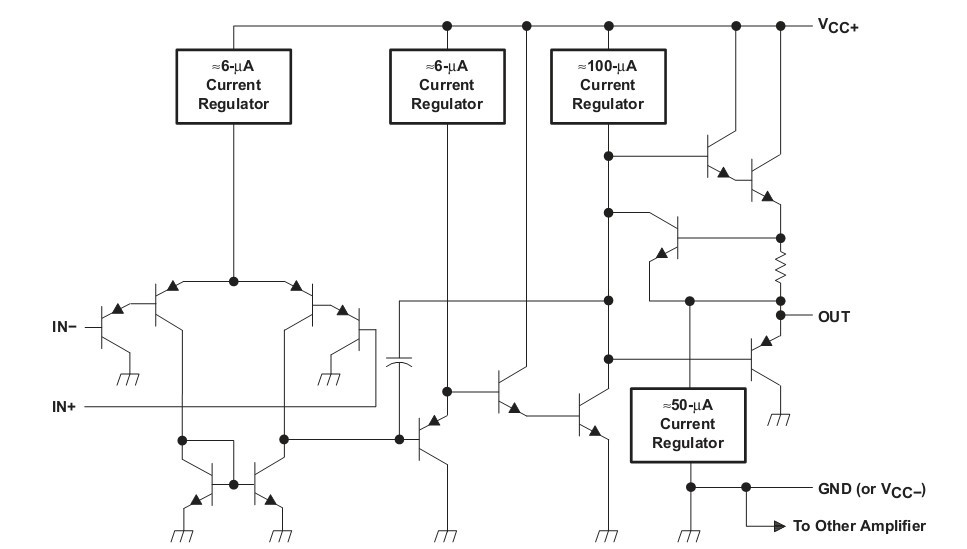

The LM358 is a low power dual operational amplifier. The LM358 consists of two independent,high-gain, frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V , and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply; voltage.; Applications include transducer amplifiers, dc amplification blocks, and all the conventional operational amplifier circuits that now can be implemented more easily in single-supply-voltage systems. For example,these devices can be operated directly from the standard 5-V supply used in digital systems and easily can; (4)provide the required interface electronics without additional± 5-V supplies.

Parametrics

LM358 absolute maximum ratings: (1)Wide Supply Range:Single Supply=3V to 32V;or Dual Supplies =±1.5V to ±16V; (2)Low Supply-Current Drain, Independent of supply Voltage:0.7mA Typ; (3)Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground; (4)Low Input Bias and Offset Parameters:Input Offset Voltage=3mV Typ;A Versions=2 mV Typ;Input Offset Current =2nA Typ;Input Bias Current = 20 nA Typ;A Versions = 15nA Typ; (5)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage:32 V; (6)Open-Loop Differential Voltage Amplification: 100 V/mV Typ; (7)Internal Frequency Compensation.

Features

LM358 features: (1)large DC voltage gain: 100dB; (2)wide power supply range; (3)very low supply current drain; (4)internally frequency compensated for unity gain; (5)low input offset voltage: 2mV; (6)input common-mode voltage range includes ground.
