Product Summary

The MAX3232ESE is a transceiver. It has a proprietary low dropout transmitter out-put stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. The devices require only four small 0.1μF external charge-pump capacitors. The MAX3232ESE+ is guaranteed to run at data rates of 120kbps while maintaining RS-232 output levels.; (2)The MAX3232ESE have 2 receivers and 2 drivers.The MAX3232 are pin, package,and functionally compatible with the industry-standard MAX242 and MAX232, respectively.

Parametrics

MAX3232ESE absolute maximum ratings: (1)VCC:-0.3V to +6V; (2)V+ (Note 1) :-0.3V to +7V; (3)V- (Note 1) :+0.3V to -7V; (4)V+ + V- (Note 1):+13V; (5)Input Voltages:T_IN, SHDN , EN=-0.3V to +6V;MBAUD=-0.3V to (VCC + 0.3V);R_IN =±25V; (6)Output Voltages:T_OUT=±13.2V;R_OUT =-0.3V to (VCC + 0.3V); (7)Short-Circuit Duration:T_OUT =Continuous; (8)Continuous Power Dissipation (TA = +70°C).

Features

MAX3232ESE features: (1)Low Supply Current:300μA; (2)Guaranteed Data Rate:120kbps; (3)Pin Compatible with Industry-Standard MAX232; (4)Guaranteed Slew Rate:6V/μs.

Diagrams

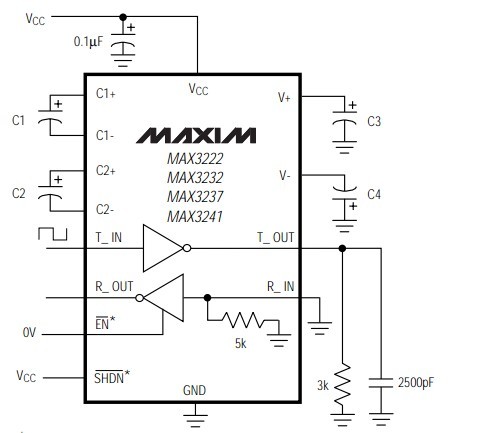

MAX3232ESE block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX3232ESE
MAX3232ESE
Maxim Integrated Products
RS-232 Interface IC
Data Sheet
Negotiable
MAX3232ESE+
MAX3232ESE+
Maxim Integrated Products
RS-232 Interface IC 3-5.5V 1Mbps Transceiver
Data Sheet
0-1: $3.76
1-25: $2.52
25-50: $1.82
50-100: $1.80
MAX3232ESE+T
MAX3232ESE+T
Maxim Integrated Products
RS-232 Interface IC 3-5.5V 1Mbps Transceiver
Data Sheet
0-2080: $1.57
2080-2500: $1.57
MAX3232ESE-T
MAX3232ESE-T
Maxim Integrated Products
RS-232 Interface IC
Data Sheet
Negotiable
