Product Summary

The MRF134 is a power field-effect transistor.

Parametrics

MRF134 absolute maximum ratings: (1)drain-source voltage: 65V; (2)drain-gate voltage: 65Vdc; (3)gate-source voltage: ±40V; (4)drain current-continuous: 0.9A; (5)total device dissipation: 17.5W; (6)storage temperature range: -65 to 150℃.

Features

MRF134 features: (1)Guaranteed 28V, 150 MHz performance :Output power = 5.0 watts; Minimum gain = 11 dB ;Efficiency = 55% (Typical) ; (2)Small– and large–signal characterization ; (3)Typical performance at 400 MHz, 28V, 5.0W : Output = 10.6 dB gain ; (4)100% tested for load mismatch at all phase angles with 30:1 VSWR ; (5)Low noise figure: 2.0 dB (Typ.) at 200 mA, 150 MHz ; (6)Excellent thermal stability, ideally suited for Class A operation.

Diagrams

MRF134 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

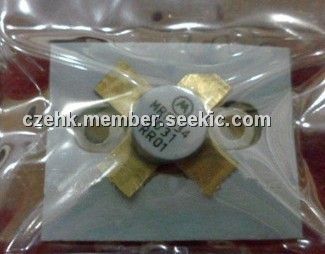

MRF134
MRF134

M/A-COM Technology Solutions

Transistors RF MOSFET Power 5-400MHz 5 Watts 28Volt Gain 11dB

Data Sheet

0-1: $18.53
1-10: $12.13
10-25: $11.78
25-50: $11.44
