Product Summary
The MRF137 is a power field-effect transistor.
Parametrics
MRF137 absolute maximum ratings: (1)drain-source voltage: 65V; (2)drain-gate voltage: 65V; (3)gate-source voltage: ±40V; (4)drain current: 5A; (5)total device dissipation: 100W; (6)storage temperature: -65 to 150℃; (7)operating junction temperature: 200℃.
Features
MRF137 features: (1)Guaranteed 28 V, 150 MHz performance :Output power = 30 W ;Minimum gain = 13 dB ;Efficiency — 60% (Typical) ; (2)Small– and large–signal characterization ; (3)Typical performance at 400 MHz, 28 Vdc, 30 W output = 7.7 dB gain ; (4)100% tested for load mismatch at all phase angles with 30:1 VSWR ; (5)Low noise figure — 1.5 dB (typ.) at 1.0 A, 150 MHz ; (6)Excellent thermal stability, ideally suited for Class A operation ; (7)Facilitates manual gain control, ALC and modulation techniques.

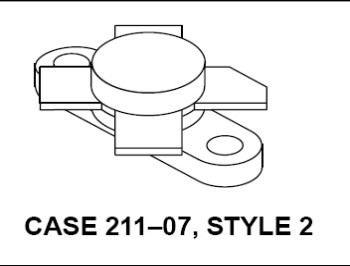

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

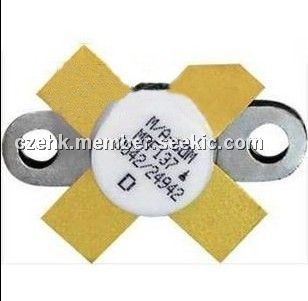

 MRF137 |
M/A-COM Technology Solutions |
Transistors RF MOSFET Power 5-400MHz 30Watts 28Volt Gain 13dB |
Data Sheet |
|
|
||||||||||||
