Product Summary
The MRF154 is a broadband RF power MOSFET. It is designed primarily for linear large signal output stages in the 2 to 100MHz frequency range.
Parametrics
MRF154 absolute maximum rating: (1)drain-source voltage: 125Vdc; (2)drain gate voltage: 125V; (3)gate-source voltage: 40V; (4)drain current-continuous: 50A; (5)total device dissipation: 1350W; (6)stoage temperature range: -65 to 150℃.
Features
MRF154 features: (1)N–Channel enhancement mode MOSFET Specified 50 volts, 30 MHz characteristics; (2)Output power = 600 watts; (3)Power gain = 17 dB (typ.); (4)Efficiency = 45% (typ.).

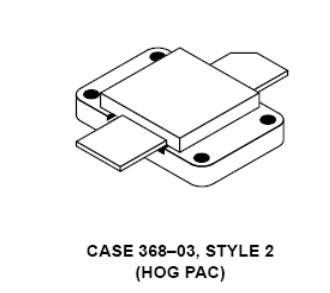

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF154 |
Advanced Semiconductor, Inc. |
Transistors RF MOSFET Power RF Transistor |
Data Sheet |
|
|
||||||||||
