Product Summary

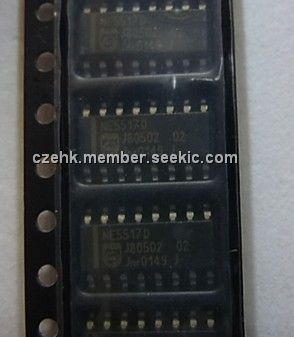

The NE5517D is a dual operational transconductance amplifier. The NE5517D contains two current-controlled transconductance amplifiers, each with a differential input and push-pull output. The AU5517/NE5517 offers significant design and performance advantages over similar devices for all types of programmable gain applications. Circuit performance is enhanced through the use of linearizing diodes at the inputs which enable a 10 dB signal-to-noise improvement referenced to 0.5% THD.
Parametrics
NE5517D absolute maximum ratings: (1)supply voltage: 44V; (2)power dissipation: 1500mW; (3)differential input voltage: ±5V; (4)diode bias current: 2mA; (5)amplifier bias current: 2mA; (6)output short-circuit duartion: indefinite; (7)buffer output current: 20mA.
Features
NE5517D features: (1)Constant impedance buffers; (2)Excellent matching between amplifiers; (3)Linearizing diodes; (4)High output signal-to-noise ratio.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NE5517D |
ON Semiconductor |
Transconductance Amplifiers Transconductance |
Data Sheet |
Negotiable |
|
||||||||||||
|
NE5517DG |
ON Semiconductor |
Transconductance Amplifiers Transconductance Dual Commercial Temp |
Data Sheet |
|
|
||||||||||||
|
NE5517DR2G |
ON Semiconductor |
Transconductance Amplifiers Transconductance Dual Commercial Temp |
Data Sheet |
|
|
||||||||||||
|
NE5517DR2 |
ON Semiconductor |
Transconductance Amplifiers Transconductance |
Data Sheet |
Negotiable |
|
||||||||||||
