Product Summary

The NE555P is a precision timer capable of producing accurate time delays or oscillation. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the astable mode of operation, the frequency and duty cycle of the NE555P can be controlled independently with two external resistors and a single external capacitor. The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels of the NE555P can be altered by use of the control-voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. The output circuit is capable of sinking or sourcing current up to 200 mA. Operation is specified for supplies of 5 V to 15 V. With a 5-V supply, output levels of the NE555P are compatible with TTL inputs.

Parametrics

NE555P absolute maximum ratings: (1)Supply voltage: 18 V; (2)Input voltage: VCC; (3)Output current: ±225 mA; (4)Package thermal impedance: 85℃/W; (5)Operating virtual junction temperature: 150℃; (6)Storage temperature range: -65℃ to 150℃.

Features

NE555P features: (1)Timing From Microseconds to Hours; (2)Adjustable Duty Cycle; (3)Astable or Monostable Operation; (4)TTL-Compatible Output Can Sink or Source up to 200 mA.

Diagrams

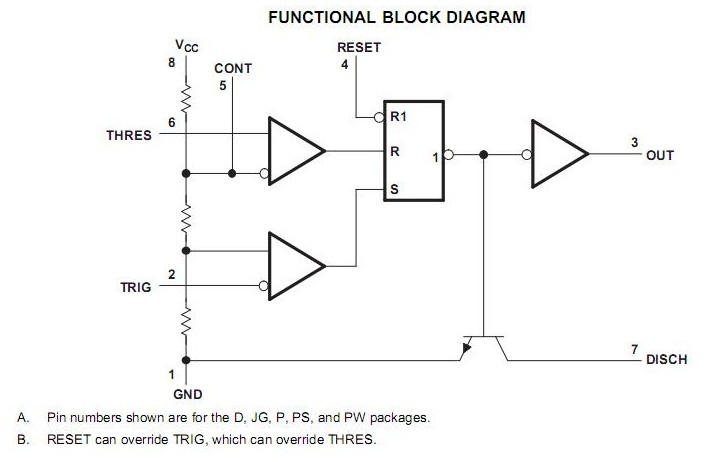

NE555P block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
NE555P
NE555P

Texas Instruments

Timers & Support Products Precision

Data Sheet

0-1: $0.23
1-25: $0.17
25-100: $0.13
100-250: $0.10
NE555PE4
NE555PE4

Texas Instruments

Timers & Support Products Precision

Data Sheet

0-1: $0.25
1-25: $0.23
25-100: $0.16
100-250: $0.10
NE555PSRE4
NE555PSRE4

Texas Instruments

Timers & Support Products Precision

Data Sheet

0-1: $0.18
1-25: $0.13
25-100: $0.11
100-250: $0.10
NE555PSR
NE555PSR

Texas Instruments

Timers & Support Products Precision

Data Sheet

0-1: $0.25
1-25: $0.16
25-100: $0.13
100-250: $0.11
NE555PW
NE555PW

Texas Instruments

Timers & Support Products Sgl Prec Timer

Data Sheet

0-1: $0.21
1-25: $0.16
25-100: $0.13
100-250: $0.12
NE555PSRG4
NE555PSRG4

Texas Instruments

Timers & Support Products Sgl Prec Timer

Data Sheet

0-1: $0.18
1-25: $0.13
25-100: $0.11
100-250: $0.10
NE555PWE4
NE555PWE4

Texas Instruments

Timers & Support Products Sgl Prec Timer

Data Sheet

0-1: $0.21
1-25: $0.16
25-100: $0.13
100-250: $0.12
NE555PWG4
NE555PWG4

Texas Instruments

Timers & Support Products Sgl Prec Timer

Data Sheet

0-1: $0.21
1-25: $0.16
25-100: $0.13
100-250: $0.12
